The Relational Model

Data Science 310

Boston University

The Relational Model: A Brief History

Defined in a landmark 1970 paper by Edgar ‘Ted’ Codd.
Earlier data models were closely tied to the physical representation of the data.
The model was revolutionary because it provided data independence — separating the logical model of the data from its underlying physical representation.
Allows users to access the data without understanding how it is stored on disk.

The Relational Model: Basic Concepts

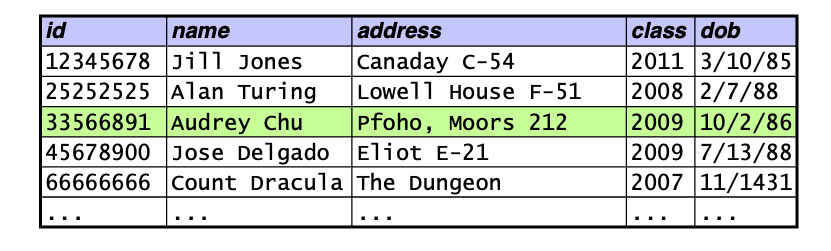

A database consists of a collection of tables.
Each row in a table holds data that describes either:
- an entity
- a relationship between two or more entities

Each column in a table represents one attribute of an entity.
- each column has a domain of possible values

Relational Model: Terminology

Two sets of terminology:
- table = relation
- row = tuple
- column = attribute
We’ll use both sets of terms.

Requirements of a Relation

Each column must have a unique name.
The values in a column must be of the same type (i.e., must come from the same domain).
- integers, real numbers, dates, strings, etc.
Each cell must contain a single value.

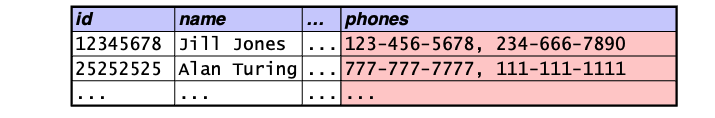

- example: we can’t have a column holding a list of phone numbers

No two rows can be identical.
- identical rows are known as duplicates

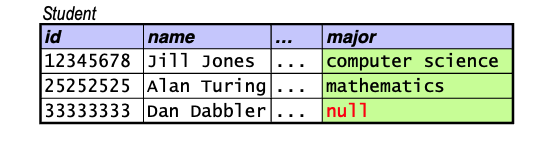

Null Values

By default, the domains of most columns include a special value called null.

Null values can be used to indicate that:
- the value of an attribute is unknown for a particular tuple
- the attribute doesn’t apply to a particular tuple

Relational Schema

The schema of a relation consists of:
- the name of the relation
- the names of its attributes
- the attributes’ domains (although we’ll ignore them for now)
Example:
- Student(id, name, address, email, phone)

The schema of a relational database consists of the schema of all of the relations in the database.

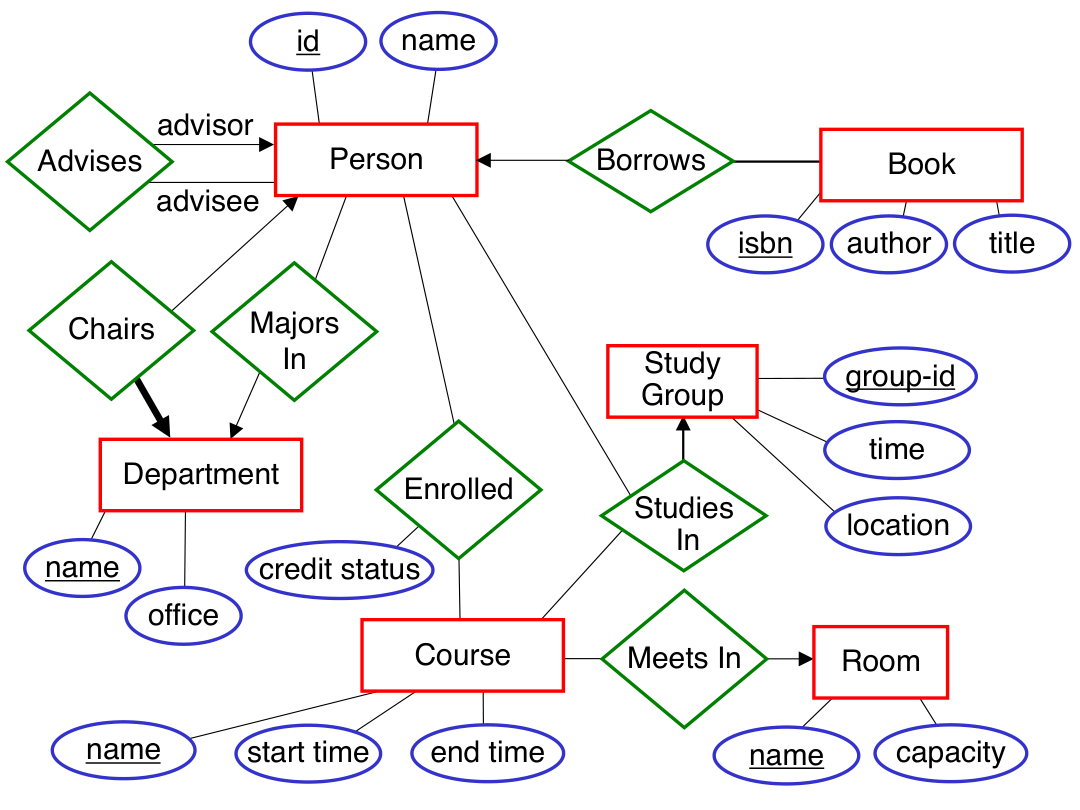

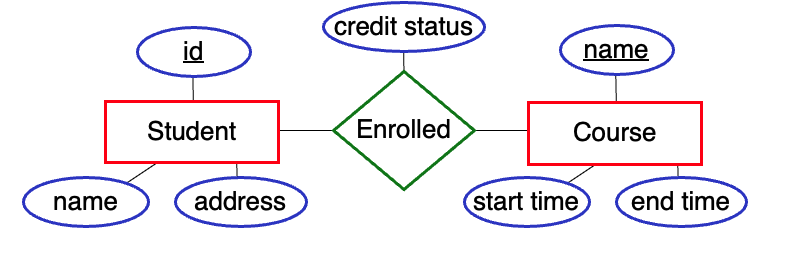

ER Diagram to Relational Database Schema

Basic process:
- entity set \(\rightarrow\) a relation with the same attributes
- relationship set \(\rightarrow\) a relation whose attributes are:
  - the primary keys of the connected entity sets
  - the attributes of the relationship set

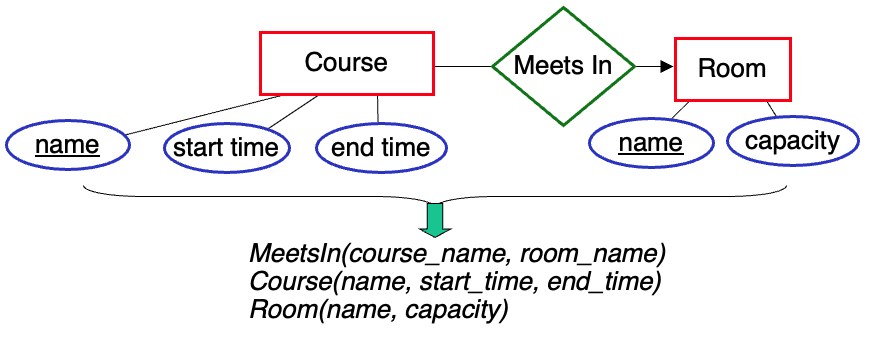

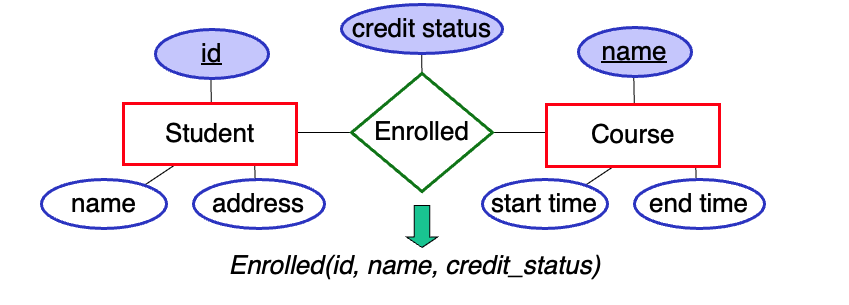

Example of converting a relationship set:

Note that we would also create a relation for each entity set.

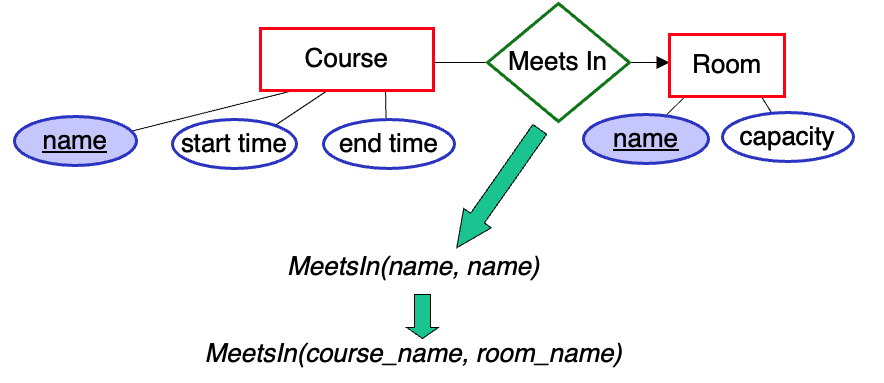

Renaming Attributes

When converting a relationship set to a relation, there may be multiple attributes with the same name. In which case, we need to rename them.

We are also free to rename attributes for the sake of clarity.

Special Case: Many-to-One Relationship Sets

Ordinarily, a binary relationship set will produce three relations:

one for the relationship set
one for each of the connected entity sets

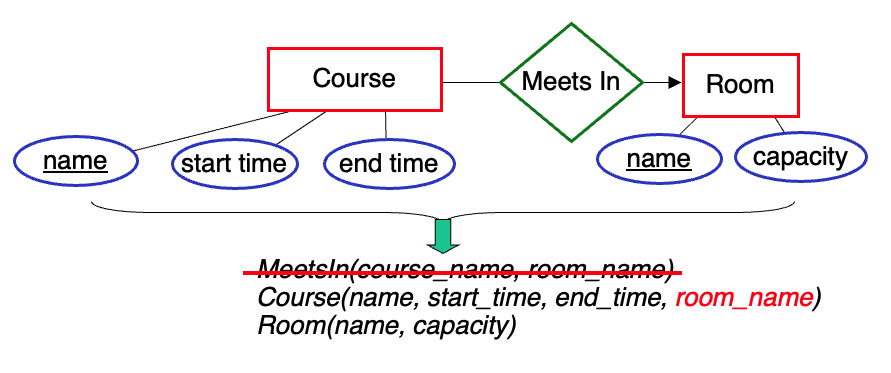

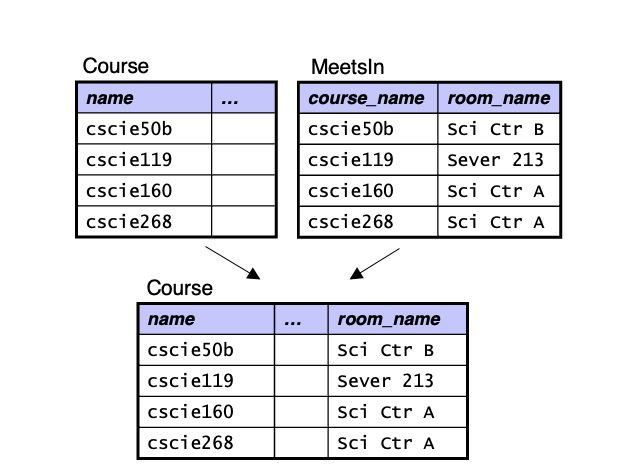

Special Case: Many-to-One Relationship Sets (cont.)

However, if a relationship set is many-to-one, we often:

eliminate the relation for the relationship set
capture the relationship set in the relation used for the entity set on the many side of the relationship

Special Case: Many-to-One Relationship Sets (cont.)

Advantages of this approach:

makes some types of queries more efficient to execute
uses less space

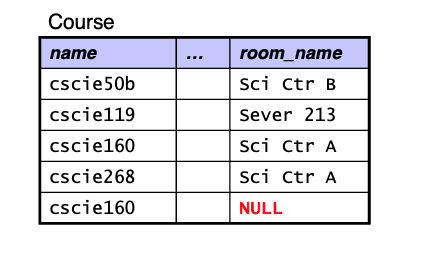

Special Case: Many-to-One Relationship Sets (cont.)

If one or more entities don’t participate in the relationship, there will be null attributes for the fields that capture the relationship.
If a large number of entities don’t participate in the relationship, it may be better to use a separate relation.

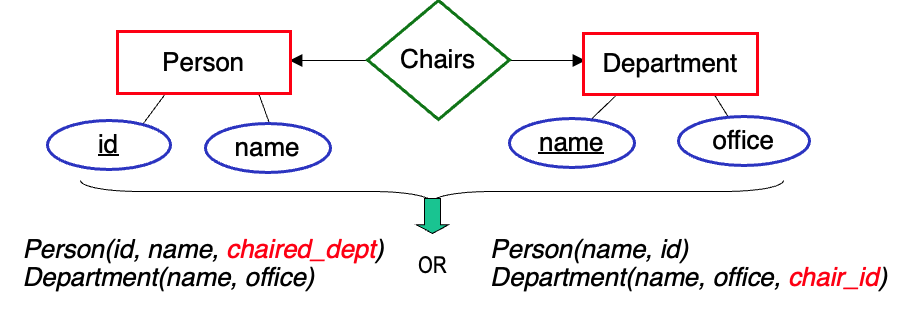

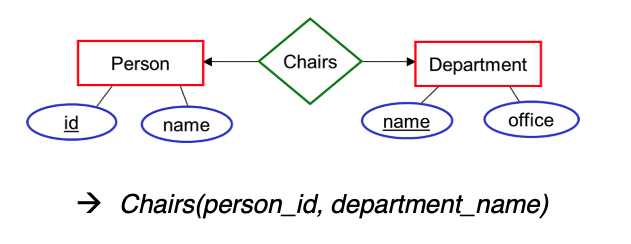

Special Case: One-to-One Relationship Sets

Here again, we’re able to have only two relations – one for each of the entity sets.
In this case, we can capture the relationship set in the relation used for either of the entity sets.

Which of these would probably make more sense?

the second one, since almost every Department has a chair

Many-to-Many Relationship Sets

For many-to-many relationship sets, we need to use a separate relation for the relationship set.

Can’t capture the relationships in the Student table
- a given student can be enrolled in multiple courses
Can’t capture the relationships in the Course table
- a given course can have multiple students enrolled in it
Need to use a separate table:
- Enrolled(student_id, course_name, credit_status)

Recall: Keys and Candidate Keys

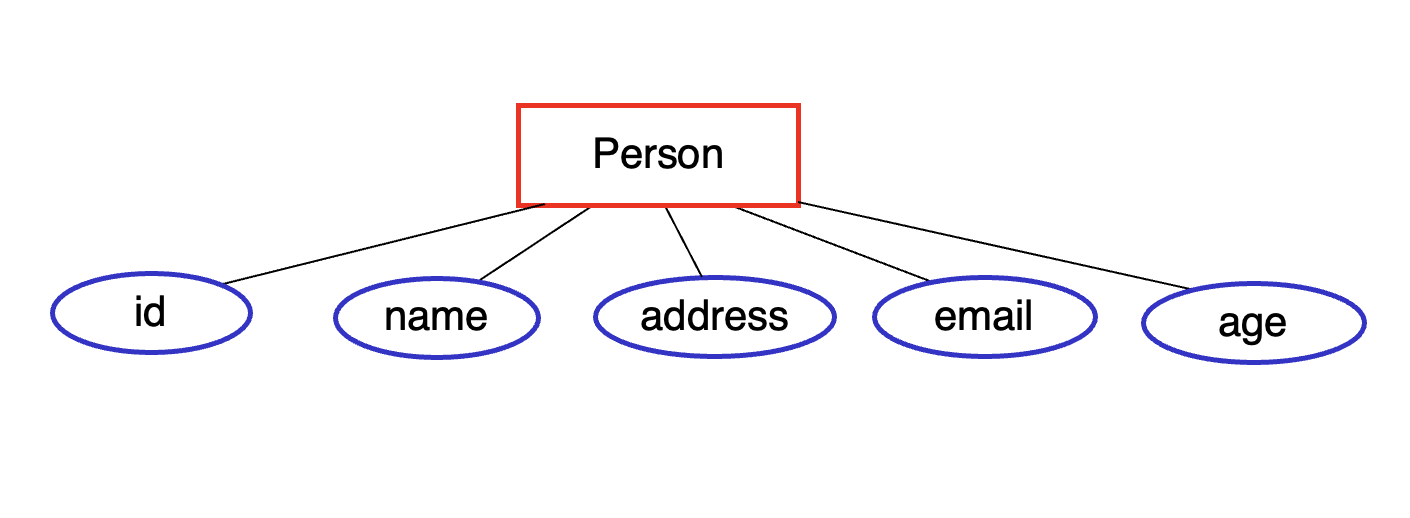

A key is an attribute or collection of attributes that can be used to uniquely identify each entity in an entity set.

Possible keys include:

id
email
(id, name)

A candidate key is a minimal collection of attributes that is a key.

minimal = no unnecessary attributes are included

Note that (id, name) is not minimal, because we can remove name and still have a key

Recall: Primary Key

We typically choose one of the candidate keys as the primary key. In an ER diagram, we underline the primary key attribute(s).

In the relational model, we also designate a primary key by underlying it.

Person(id, name, address, …)

A relational DBMS will ensure that no two rows have the same value / combination of values for the primary key.

known as a uniqueness constraint

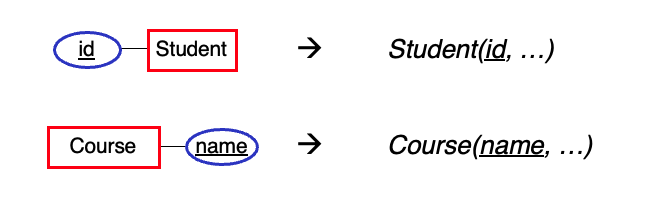

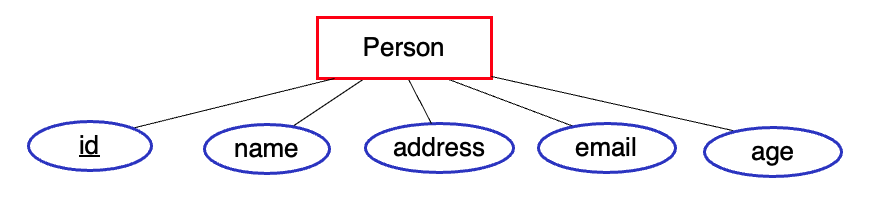

Primary Keys of Relations for Entity Sets

When translating an entity set to a relation, the relation gets the same primary key as the entity set.

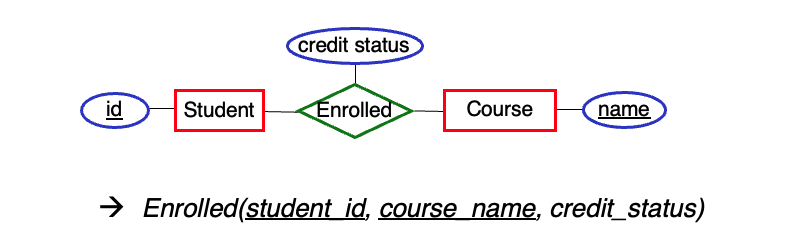

Primary Keys of Relations for Relationship Sets

When translating a relationship set to a relation, the primary key depends on the cardinality constraints.
For a many-to-many relationship set, we take the union of the primary keys of the connected entity sets.

Doing so prevents a given combination of entities from appearing more than once in the relation
It still allows a single entity to appear multiple times, as part of different combinations

Primary Keys of Relations for Relationship Sets (cont.)

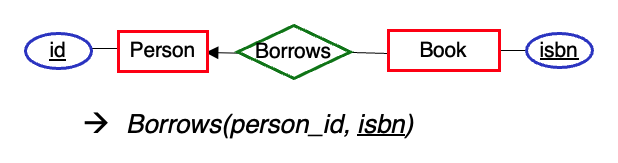

For a many-to-one relationship set, if we decide to use a separate relation for it, what should that relation’s primary key include?

Only the primary key of the entity set at the many end

Limiting the primary key enforces the cardinality constraint

in this example, the DBMS will ensure that a given book is borrowed by at most once person

How else could we capture this relationship set?

eliminate the relation for Borrows; put the borrower’s id in the Book relation

Primary Keys of Relations for Relationship Sets (cont.)

For a one-to-one relationship set, what should the primary key of the resulting relation be?

The primary key of either entity set.

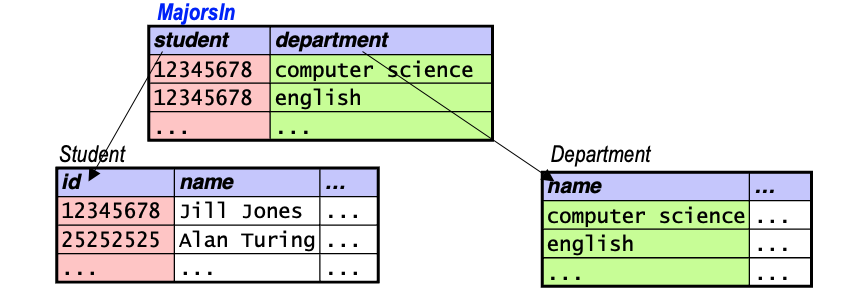

Foreign Keys

A foreign key is attribute(s) in one relation that take on values from the primary-key attribute(s) of another relation.
- example: MajorsIn has two foreign keys

We use foreign keys to capture relationships between entities.
All values of a foreign key must match the referenced attribute(s) of some tuple in the other relation.
- known as a referential integrity constraint

Enforcing Constraints

Example: assume the tables below show all of their tuples.
Which of the following additions would the DBMS allow?

A. adding (12345678, ‘John Smith’, …) to Student no

B. adding (33333333, ‘Howdy Doody’, …) to Student yes

C. adding (12345678, ‘physics’) to MajorsIn no

D. adding (25252525, ‘english’) to MajorsIn yes

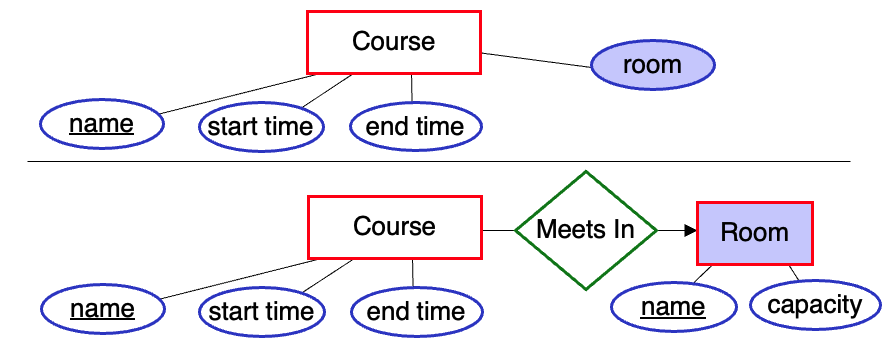

Design Issue: Attribute or Entity Set?

It can sometimes be hard to decide if something should be treated as an attribute or an entity set.

Indications that you should use an entity set:

if it has attributes of its own that you wish to capture
if, as an attribute, it could have multiple values
- multi-valued attributes are problematic in some data models

Relational Algebra

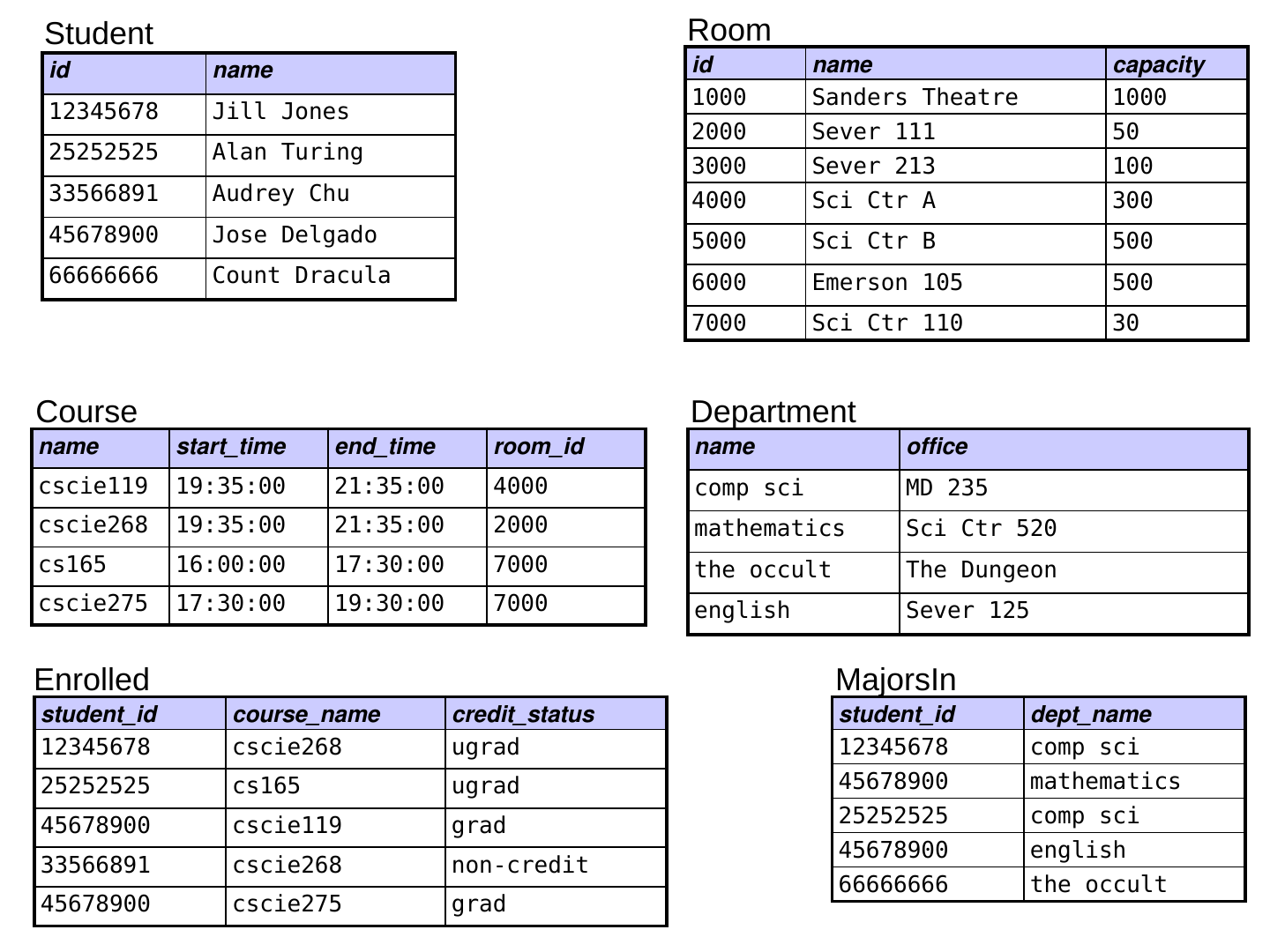

Example Domain: a University

Four relations that store info. about a type of entity:
- Student(id, name)
- Department(name, office)
- Room(id, name, capacity)
- Course(name, start_time, end_time, room_id)
Two relations that capture relationships between entities:
- MajorsIn(student_id, dept_name)
- Enrolled(student_id, course_name, credit_status)

What would the primary keys of MajorsIn and Enrolled be?

What do student_id, dept_name, and course_name have in common?
- they are all foreign keys

Where else do we have a foreign key?
- room_id in Course (takes on values from id in Room)
- dept_name in MajorsIn (takes on values from name in Department)

Relational Algebra

The query language proposed by Codd.
- a collection of operations on relations

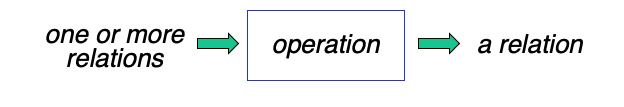

Each operation:
- takes one or more relations
- produces a relation

Relations are treated as sets.
- all duplicate tuples are removed from an operation’s result

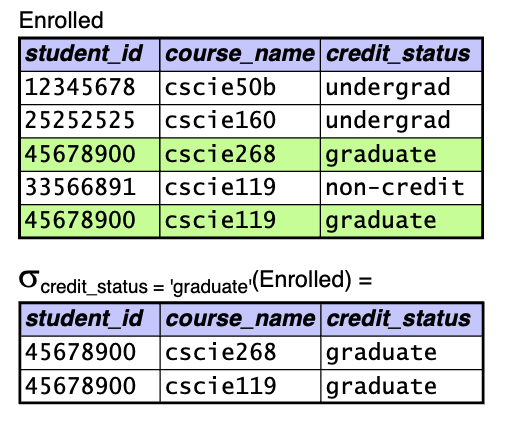

Selection

What it does: selects tuples from a relation that match a predicate
- predicate = condition
Syntax: \(\sigma_{\text{predicate}}(\text{relation})\)

Predicates may include: \(>\), \(<\), \(=\), \(\ne\), etc., as well as and, or, not

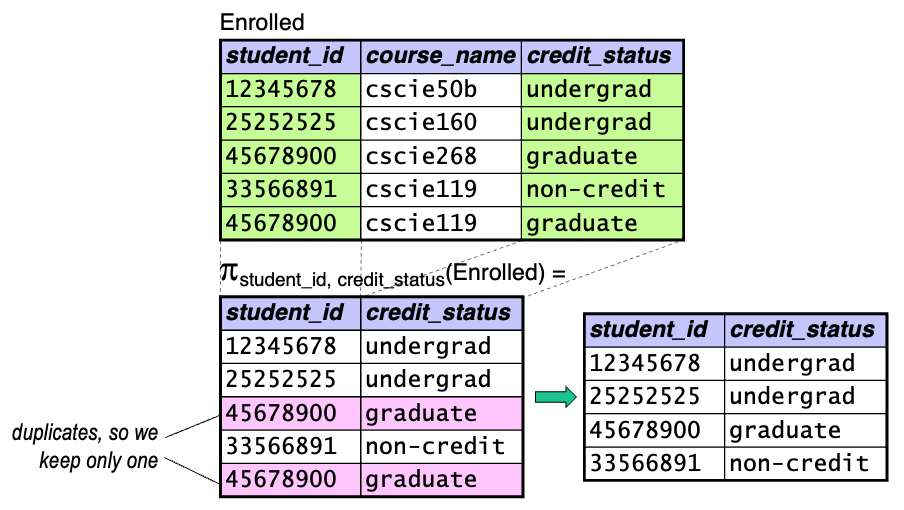

Projection

What it does: extracts attributes from a relation
Syntax: \(\pi_{\text{attributes}}(\text{relation})\)

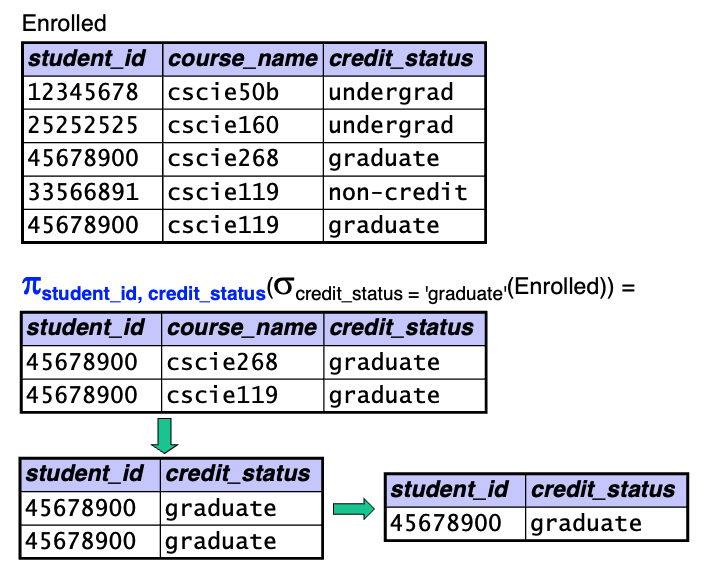

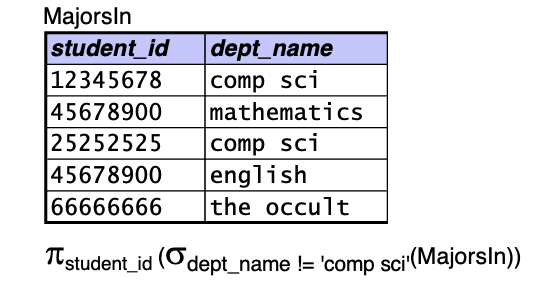

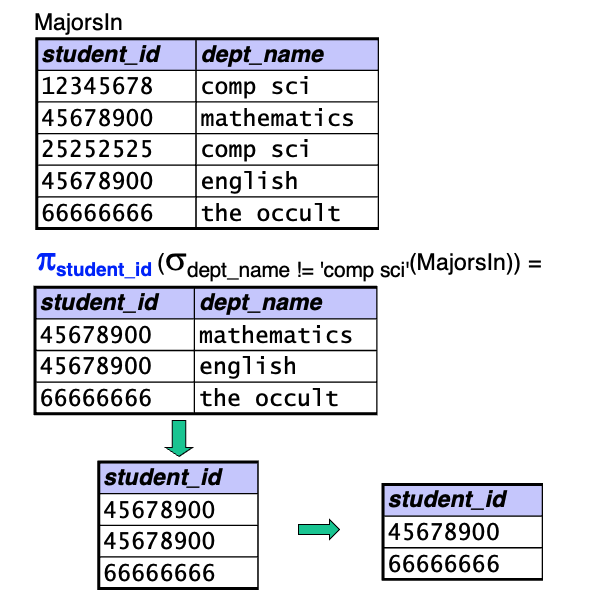

Combining Operations

Since each operation produces a relation, we can combine them.

How many rows are in the result of this query?

A. 1

B. 2

C. 3

D. 4

E. 5

Mathematical Foundations: Cartesian Product

Let \(A\) be the set of values \(\{ a_1, a_2, \ldots \}\), \(B\) be the set of values \(\{ b_1, b_2, \ldots \}\)
The Cartesian product of two sets \(A\) and \(B\) (written \(A\) \(\times\) \(B\)) is the set of all possible ordered pairs (\(a_i\), \(b_j\)), where \(a_i \in A\) and \(b_j \in B\).

Example:
- \(A\) \(=\) \(\{ \text{apple}, \text{pear}, \text{orange} \}\)
- \(B\) \(=\) \(\{ \text{cat}, \text{dog} \}\)
- \(A\) \(\times\) \(B\) \(=\) { (apple, cat), (apple, dog), (pear, cat), (pear, dog), (orange, cat), (orange, dog) }

\(C\) \(=\) \(\{ 5, 10 \}\)
\(D\) \(=\) \(\{ 2, 4 \}\)

\(C\) \(\times\) \(D\) \(=\) ?

\(C\) \(\times\) \(D\) \(=\) { (5, 2), (5, 4), (10, 2), (10, 4) }

Mathematical Foundations: Cartesian Product (cont.)

We can also take the Cartesian product of three or more sets.
\(A\) \(\times\) \(B\) \(\times\) \(C\) is the set of all possible ordered triples (\(a_i\), \(b_j\), \(c_k\)), where \(a_i \in A\), \(b_j \in B\), and \(c_k \in C\).
- example:
- \(C\) \(=\) \(\{ 5, 10 \}\)
- \(D\) \(=\) \(\{ 2, 4 \}\)
- \(E\) \(=\) \(\{ \text{hi}, \text{there} \}\)
- \(C\) \(\times\) \(D\) \(\times\) \(E\) \(=\) { (5, 2, hi), (5, 2, there), (5, 4, hi), (5, 4, there), (10, 2, hi), (10, 2, there), (10, 4, hi), (10, 4, there) }

\(A_1 \times A_2 \times \cdots \times A_n\) is the set of all possible ordered tuples \((a_{1i}, a_{2j}, \ldots, a_{nk})\), where \(a_{de} \in A_d\).

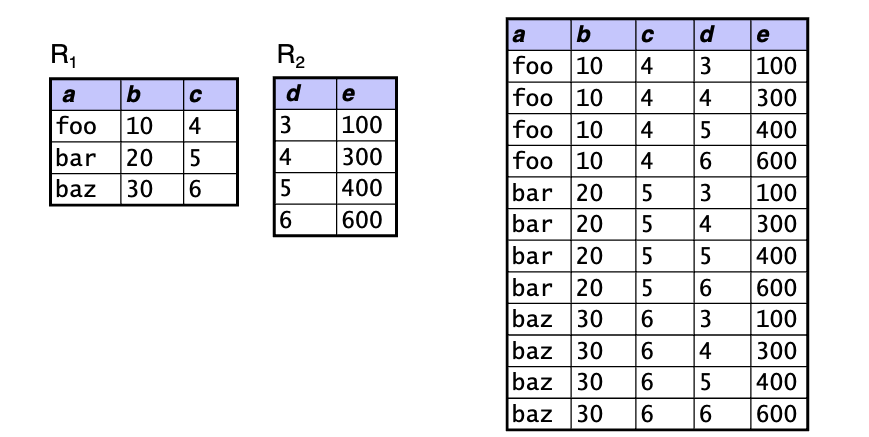

Cartesian Product in Relational Algebra

What it does: takes two relations, \(R_1\) and \(R_2\), and forms a new relation containing all possible combinations of tuples from \(R_1\) with tuples from \(R_2\)
Syntax: \(R_1 \times R_2\)
Rules: \(R_1\) and \(R_2\) must have different names

The resulting relation has a schema that consists of the attributes of \(R_1\) followed by the attributes of \(R_2\):

\[ (a_{11} a_{12}, \ldots, a_{1m}) \times (a_{21}, \ldots, a_{2n}) \rightarrow (a_{11}, \ldots, a_{1m}, a_{21}, \ldots, a_{2n}) \]

If there are two attributes with the same name, we prepend the name of the original relation

Example: the attributes of Enrolled \(\times\) MajorsIn would be

(Enrolled.student_id, course_name, credit_status, MajorsIn.student_id, dept_name)

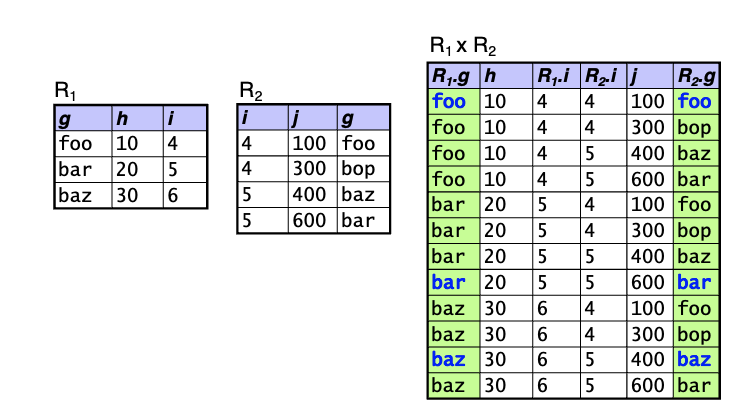

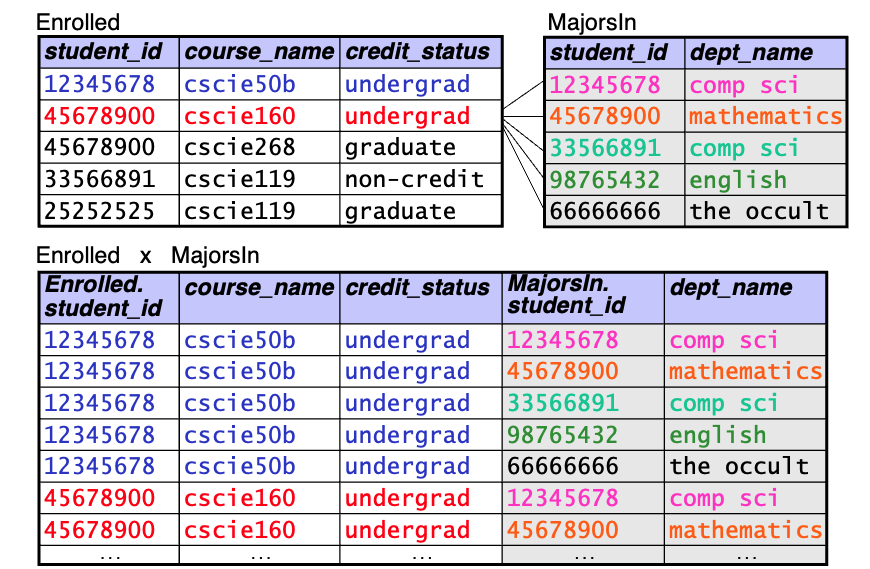

Cartesian Product in Relational Algebra (cont.)

Rename

What it does: gives a (possibly new) name to a relation, and optionally to its attributes
Syntax: \(\rho_{\text{rel_name}}(\text{relation})\)
- \(\rho_{\text{rel_name}(A_1, A_2, \ldots, A_n)}~(\text{relation})\)

Examples:

renaming to allow us to take the Cartesian product of a relation with itself:
- \(\rho_{E_1}(\text{Enrolled}) \times \rho_{E_2}(\text{Enrolled})\)
renaming to give a name to the result of an operation:
- \(\sigma_{\text{room = BigRoom.name}}(\text{Course} \times \rho_{\text{BigRoom}}(\sigma_{\text{capacity} > 200}(\text{Room})))\)

Natural Join

What it does: performs a “filtered” Cartesian product
- filters out / removes the tuples in which attributes with the same name have different values
Syntax: \(R_1 \bowtie R_2\)

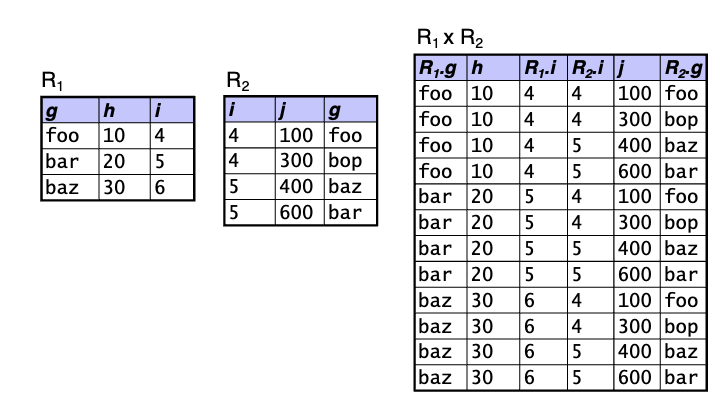

Performing the Natural Join (Step 1)

Take the full Cartesian product

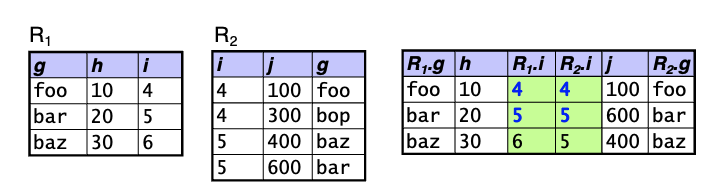

Performing the Natural Join (Step 2)

Perform a selection in which we filter out tuples in which attributes with the same name have different values
If there are no attributes with the same name, skip this step

Performing the Natural Join (Step 2)

Perform a selection in which we filter out tuples in which attributes with the same name have different values
If there are no attributes with the same name, skip this step

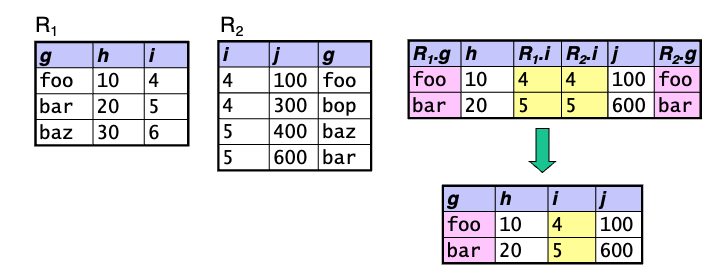

Performing the Natural Join (Step 3)

Perform a projection that keeps only one copy of each duplicated column

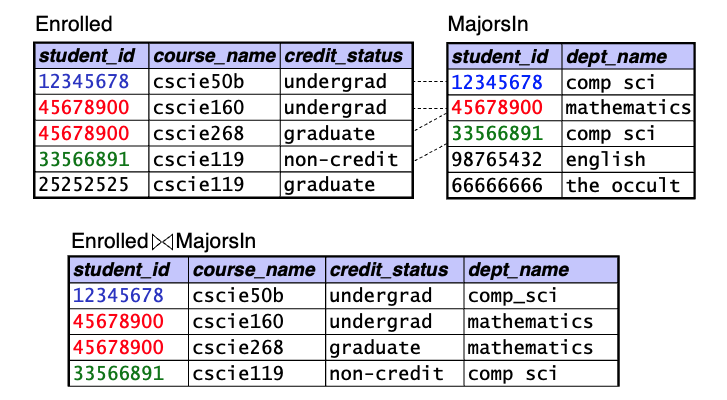

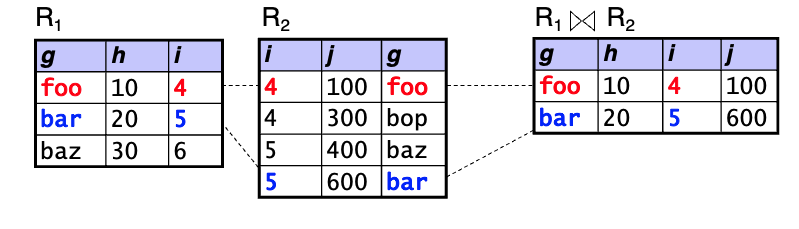

Performing the Natural Join

Final result: a table with all combinations of “matching” rows from the original tables.

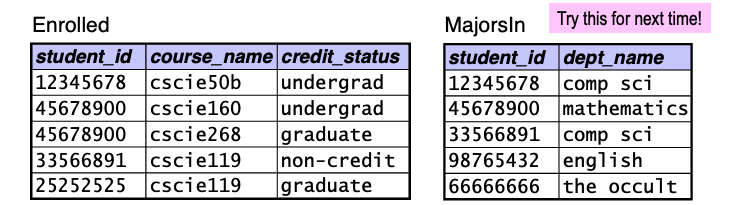

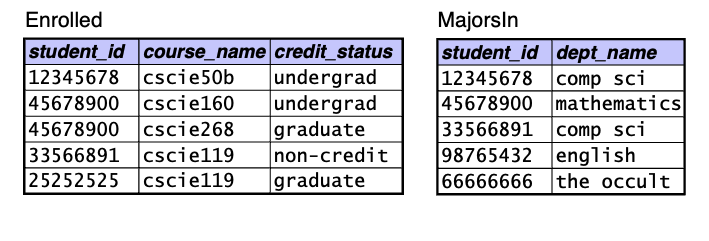

How many rows and how many columns are in Enrolled \(\bowtie\) MajorsIn?

A. 3 rows, 5 columns
B. 3 rows, 4 columns
C. 4 rows, 5 columns
D. 4 rows, 4 columns

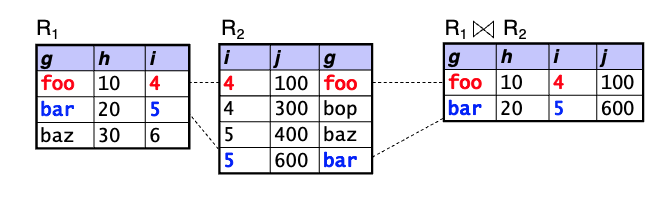

Natural Join: Summing Up

The natural join is equivalent to the following:
- Cartesian product, then selection, then projection
The resulting relation’s schema consists of the attributes of \(R_1 \times R_2\), but with common attributes included only once
- \((a, b, c) \times (a, d, c, f) \rightarrow (a, b, c, d, f)\)
If there are no common attributes, \(R_1 \bowtie R_2 = R_1 \times R_2\)

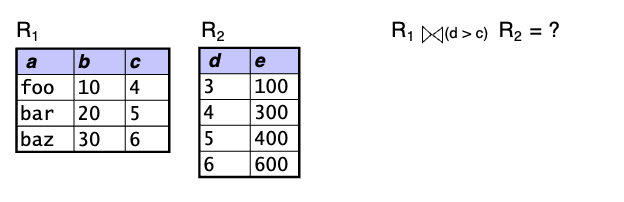

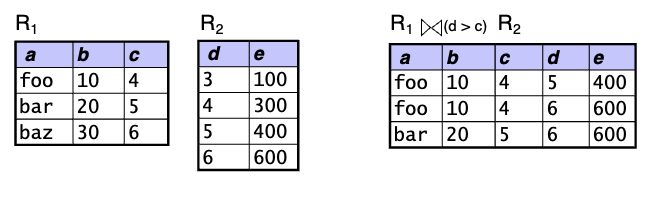

Condition Joins (aka Theta Joins)

What it does: performs a “filtered” Cartesian product according to a specified predicate
Syntax: \(R_1 \bowtie_{\theta} R_2\), where \(\theta\) is a predicate
Fundamental-operation equivalent: cross, select using \(\theta\)

Which of these queries finds the names of all courses taken by comp sci majors?

A. \(\pi_{\text{course_name}}(\sigma_{\text{dept_name} = \text{'comp sci'}}(\text{Enrolled} \times \text{MajorsIn}))\)
B. \(\pi_{\text{course_name}}(\sigma_{\text{dept_name} = \text{'comp sci'}}(\text{Enrolled} \bowtie \text{MajorsIn}))\)
C. \(\pi_{\text{course_name}}(\text{Enrolled} \bowtie_{\text{dept_name = 'comp sci'}} \text{MajorsIn})\)
D. \(\pi_{\text{course_name}}(\text{Enrolled} \bowtie (\sigma_{\text{dept_name = 'comp sci'}}((\text{MajorsIn})))\)
