Normalization in Relational Databases;

SQL Practices

Data Science 310

Boston University

Database Normalization

In proposing the relational model, Codd had some very specific advantages in mind.

Simple conceptual framework. Everything is a relation, and access is through the precise relational algebra
The structure of the database, and the rules of the DBMS, should ensure data integrity
- Logical relationships among data items cannot be violated
He proposed certain constraints on how databases should be structured
- Called normal forms
These form successively more strict rules
- There are many – more than six
- We will study the first three (most important)

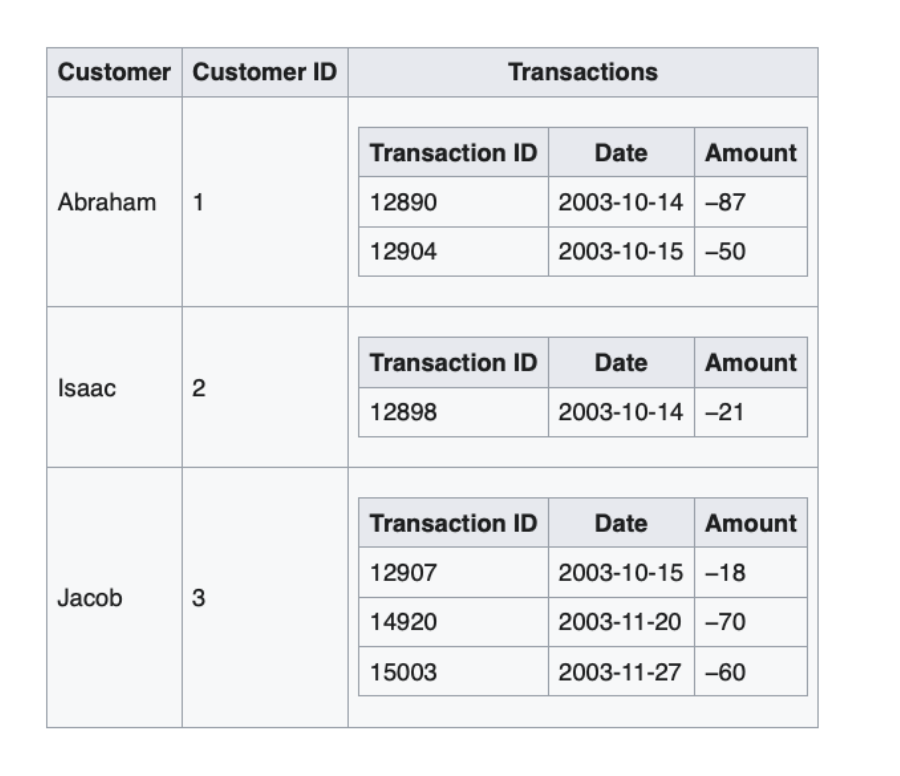

Not in 1NF

Previous DBMSs allowed structures like this
Tables nested inside tables!
This is called a hierarchical database
Creates a complex data object that is hard to reason about
Can’t use relational algebra on it

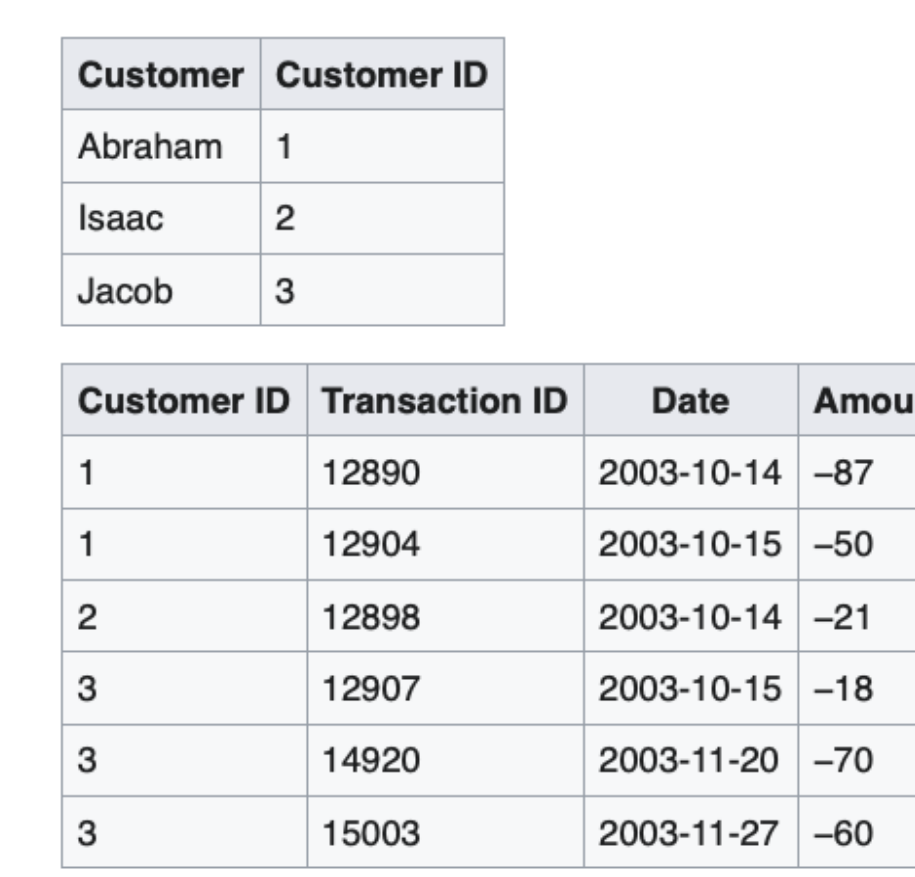

In 1NF

The previous structure can be converted into two tables
Doing so puts the database in first normal form (1NF)

1NF

First normal form (1NF): everything is a relation
In other words, no attribute domain has relations as elements
This is enforced by relational algebra or SQL: it’s not possible to create tables that have tables as elements.
Advantages:
- simplifies the data language (relational algebra or SQL)
- supports one-one and many-to-many (wasn’t possible in previous systems)
- makes further normalization levels possible

2NF

The next problem Codd wanted to solve using normalization was ‘hidden dependencies’

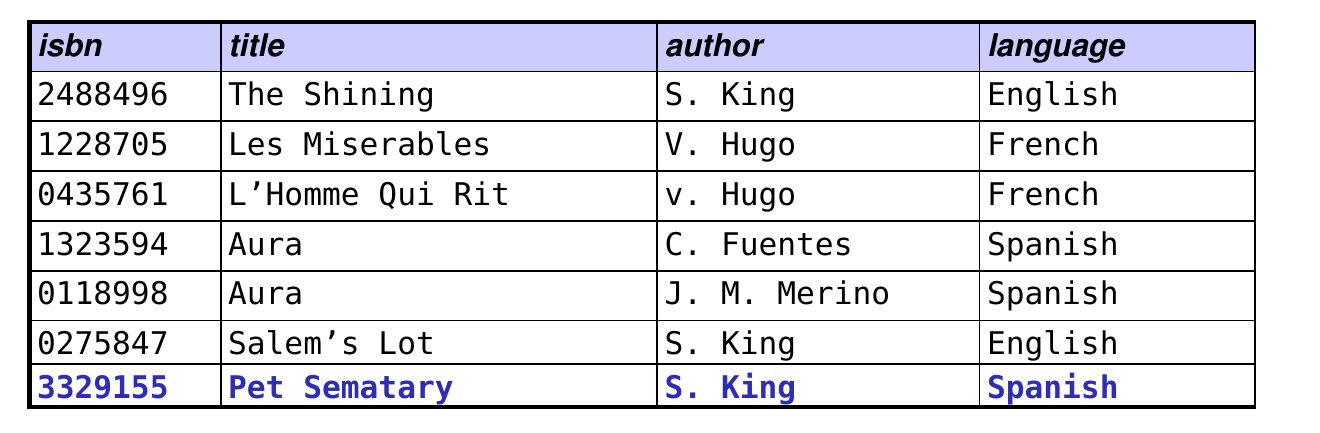

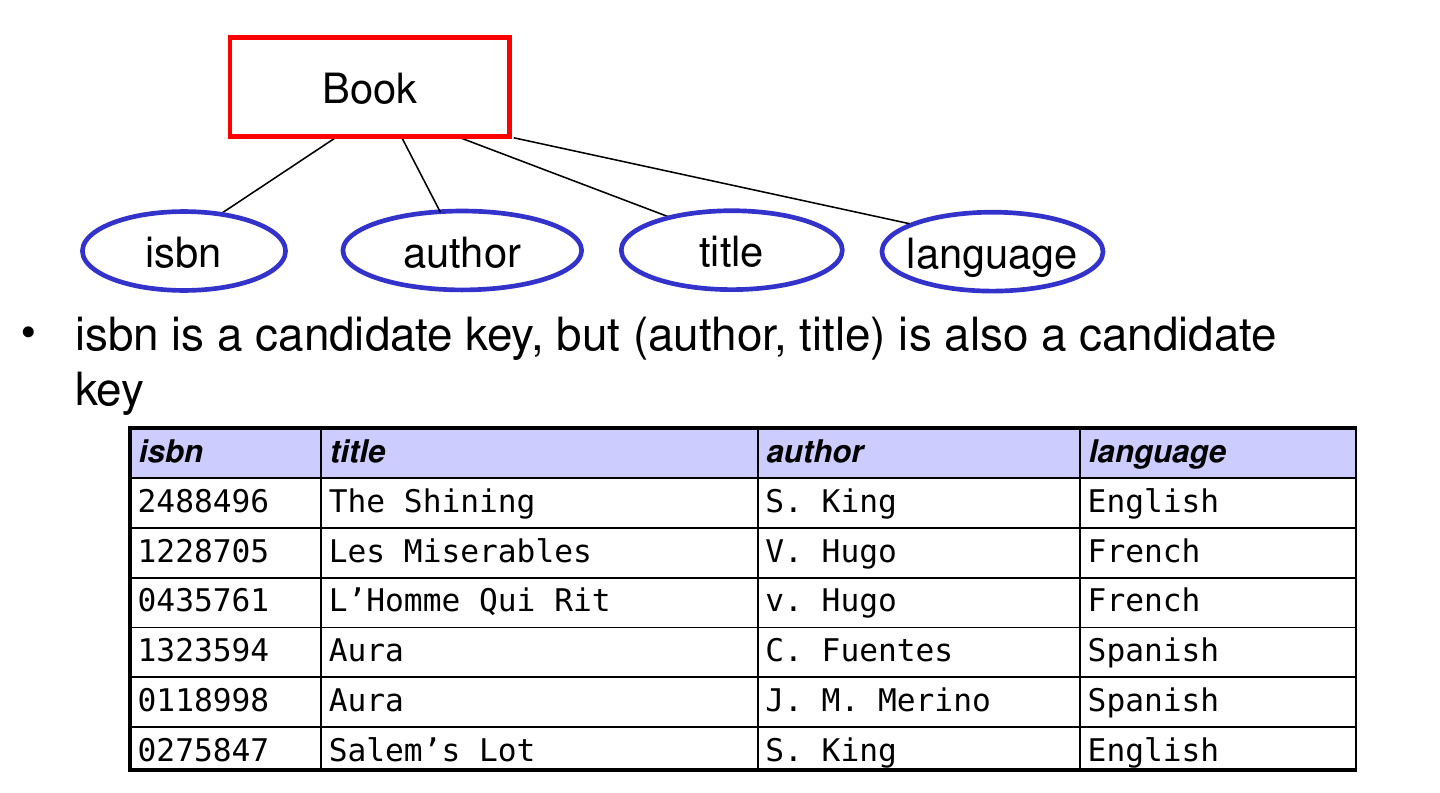

Consider this relation:

What can go wrong?

Assume each author only writes in one language

What can go wrong when this table is updated?

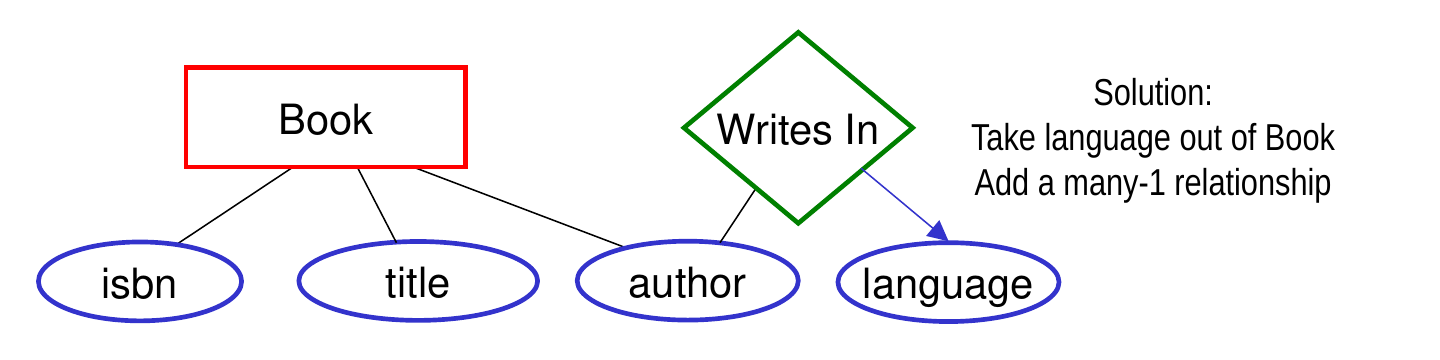

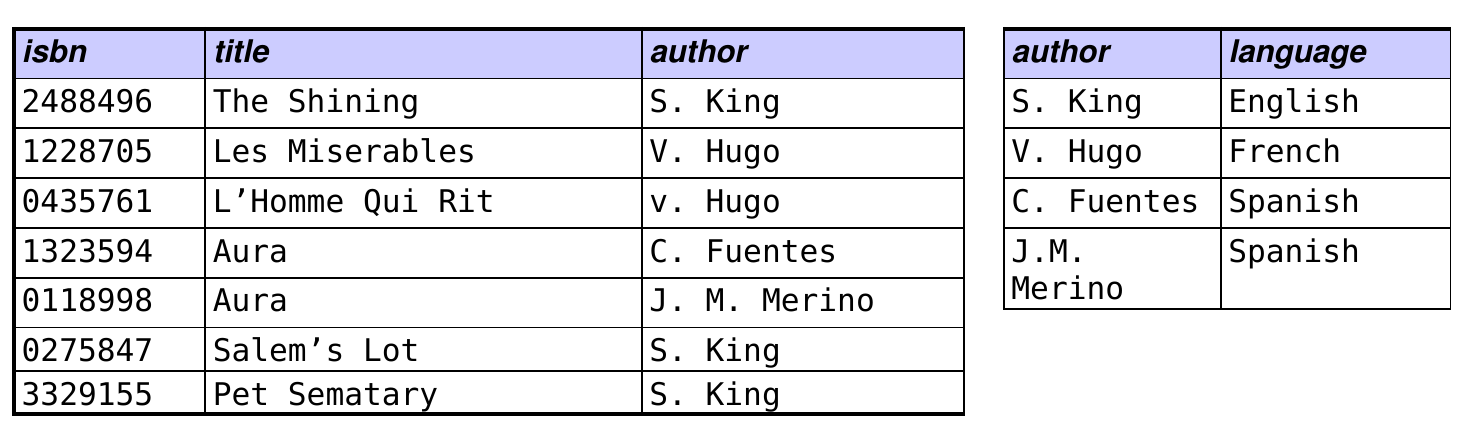

Second Normal Form (2NF)

Formally, a database is in 2NF when
- It is in 1NF, and
- It does not have any non-prime attribute that is functionally dependent on any proper subset of any candidate key
A non-prime attribute is an attribute that is not part of any candidate key (language is a non-prime attribute)
Proper subset: (author) is a proper subset of (title, author)
language is functionally dependent on author

3NF

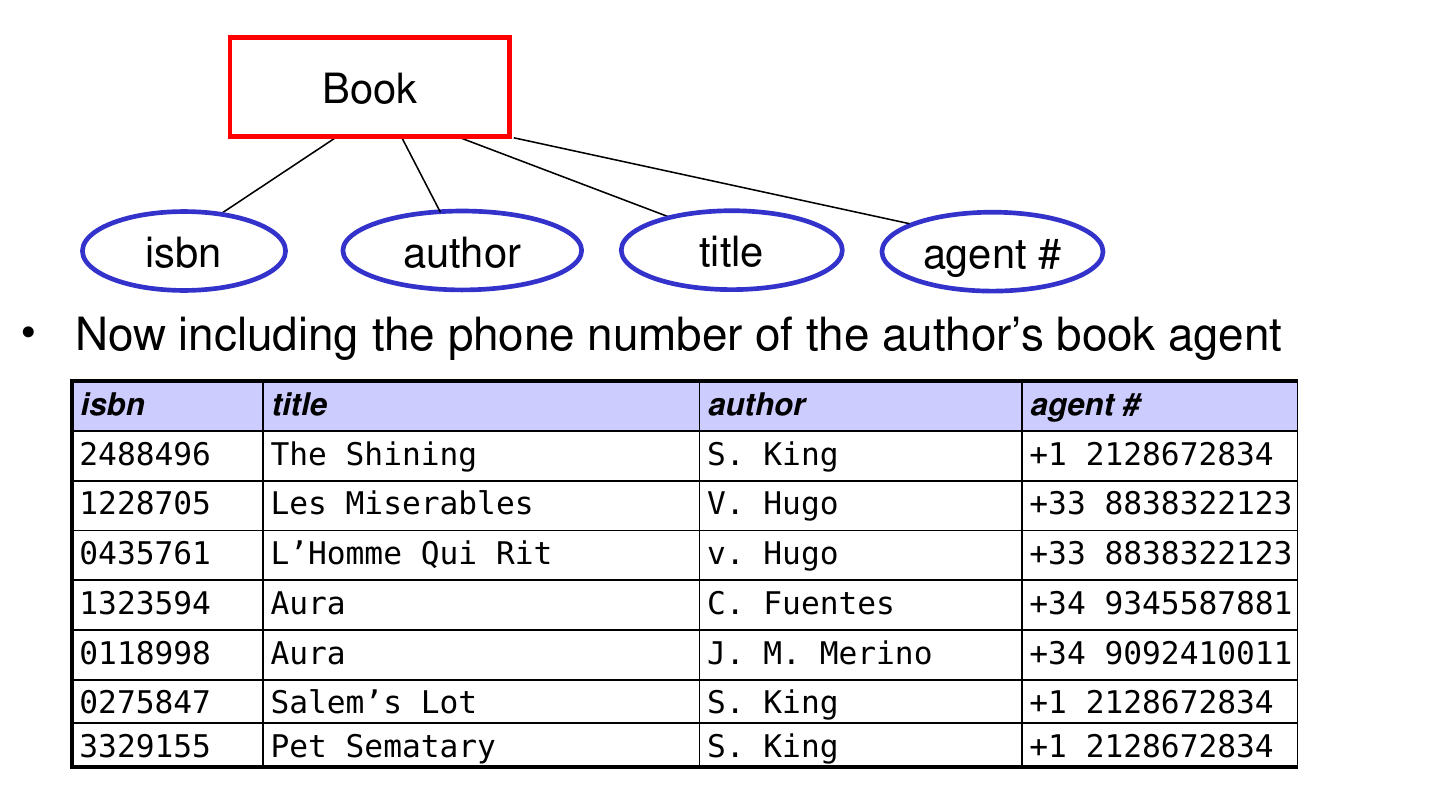

The next problem Codd wanted to solve using normalization was ‘dependent updates’

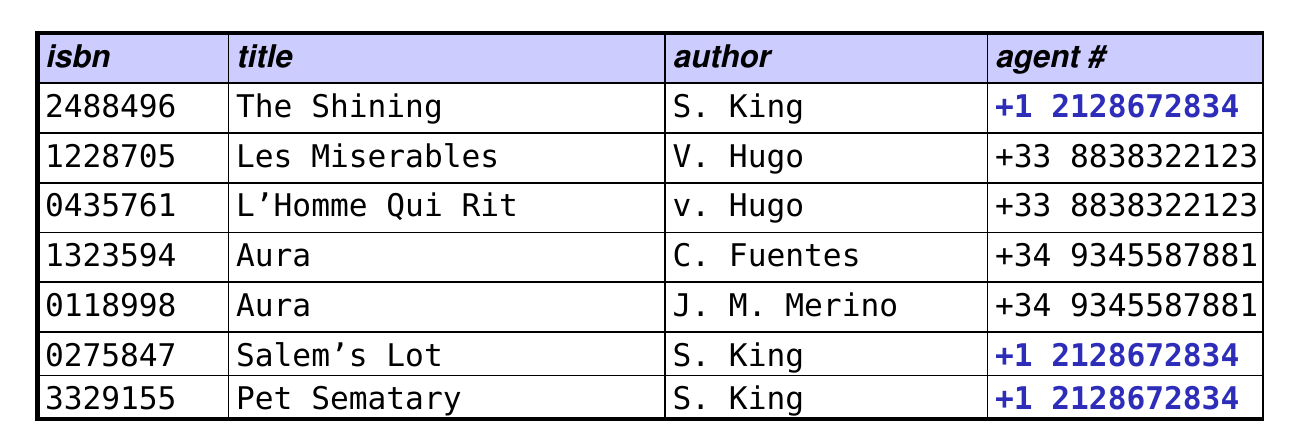

Consider this relation:

What can go wrong?

What happens when Stephen King changes book agents?

Many updates need to be made, and this is error prone

3NF

The solution is:
First put the database in 2NF:

Then capture the functional relationship between agent and phone number in a separate relation
Now, when King changes agents, we only update a single record in the Retains relation

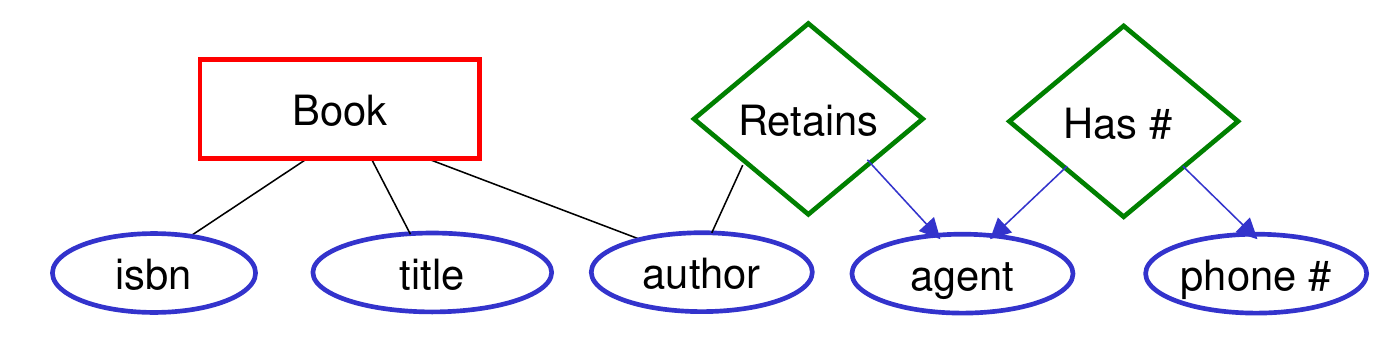

3NF (cont.)

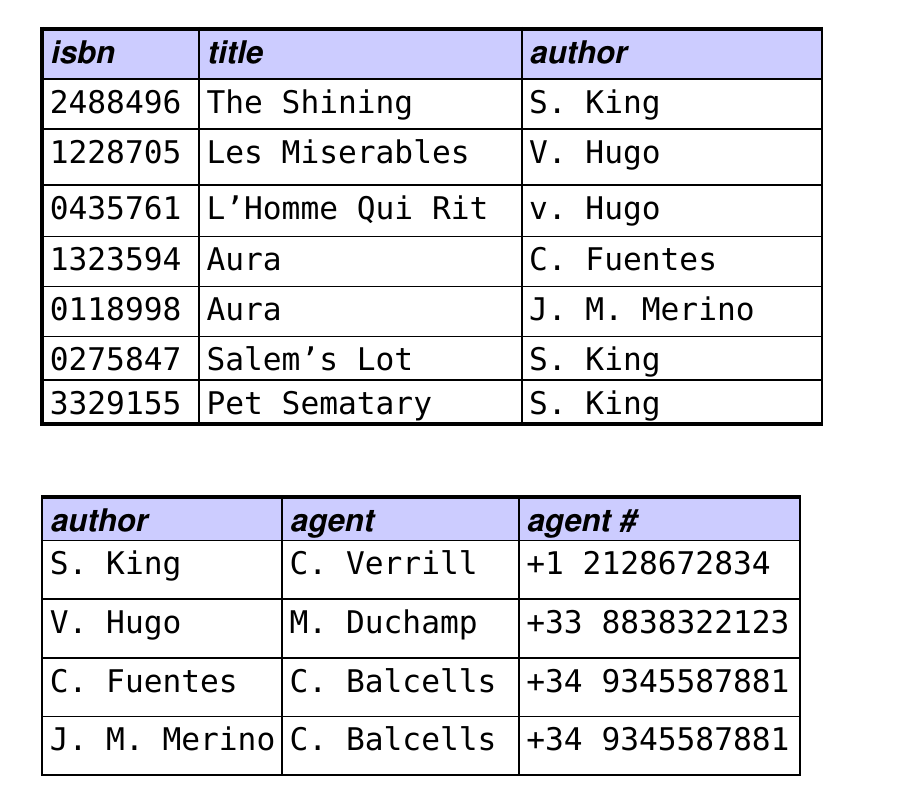

This could be done as follows:

3NF (cont.)

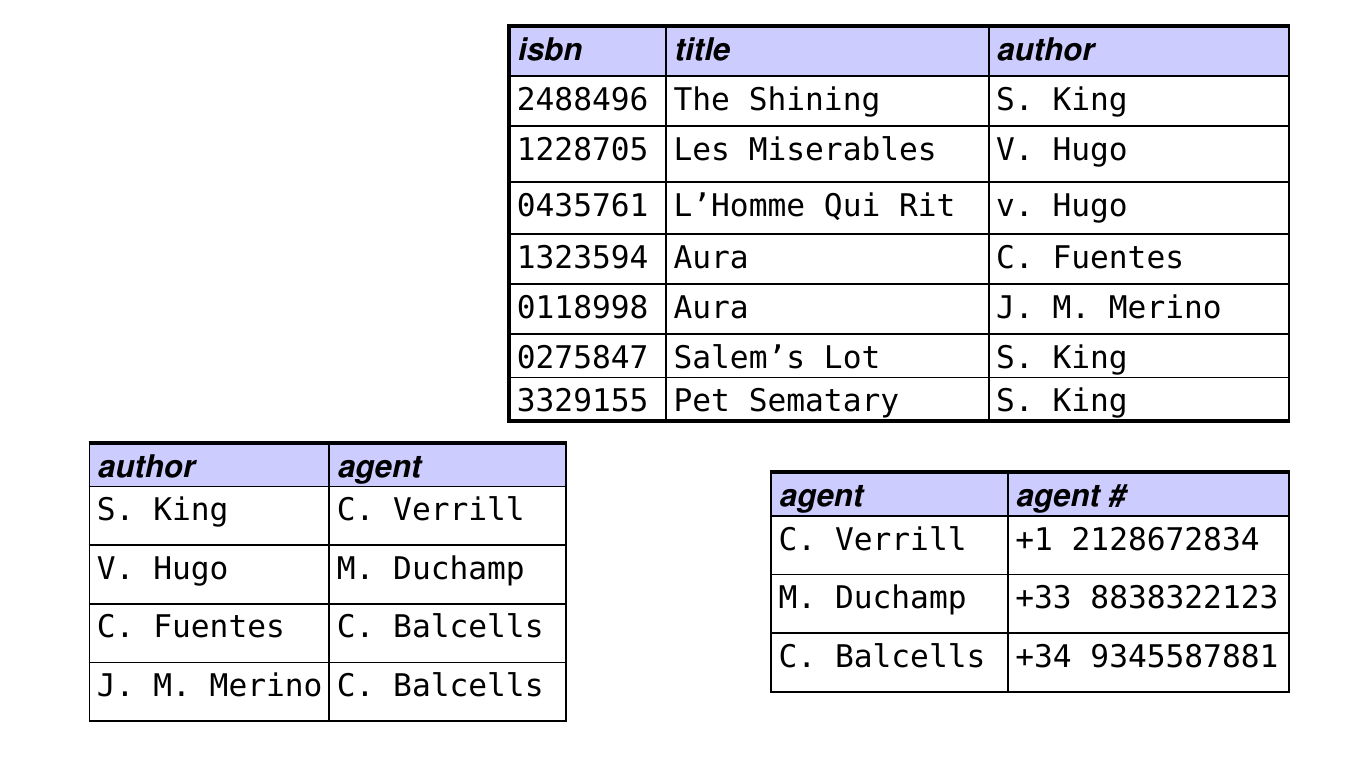

Or alternatively:

Can you think of reasons for preferring this strategy to the previous slide’s strategy?

3NF (cont.)

Formally, a database is in 3NF when:
- It is in 2NF, and
- No non-prime attribute is transitively dependent on the primary key
A non-prime attribute is an attribute that is not part of any primary key

A transitive dependency is a functional dependency in which X → Z (X determines Z) indirectly, by virtue of X → Y, and Y → Z
Here: X is author, Y is agent, and Z is agent’s phone number

Benefits of Normal Forms

1NF: All relations are flat tables; conceptually simple
2NF: A legal database update cannot violate any hidden dependencies
3NF: A change to a dependent attribute only needs to be made in one place
Central Theme: the structure of the database, and the rules of the database management system, enforce integrity on the data

Criticisms of the Relational Model

Performance can worsen for some operations. If you are retrieving a many-to-one relation, you need to access multiple tables (perhaps three). In a non-relational model, we could store the “many” in the same table as the “one”, making it possible to retrieve them all more quickly.

Databases that store complex data structures do not map well to the relational model. Object-oriented databases, graph databases, and the new vector databases (used with LLMs) do not use the relational model.

For the above reasons, there are more databases in the world than just relational … and we will study them
But relational is far and away the most common structure for databases in practice

SQL Data Types

Numeric types include:
- INTEGER
- REAL: a real number (i.e., one that may have a fractional part)
Non-numeric types include:
- DATE (e.g., ‘2017-02-23’)
- TIME (e.g., ‘15:30:30’)
- two types for strings (i.e., arbitrary sequences of characters)
  - CHAR
  - VARCHAR

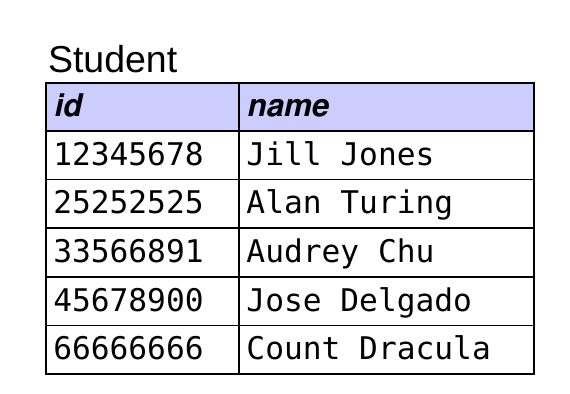

Creating the Student table…

CREATE TABLE Student(
  id CHAR(8) PRIMARY KEY,
  name VARCHAR(30)
);

Inserting a Row…

CREATE TABLE Student(
  id CHAR(8) PRIMARY KEY,
  name VARCHAR(30)
);

INSERT INTO Student
  VALUES ('4567', 'Robert Brown');

Given the CREATE TABLE command shown below, what tuple would be added by the INSERT command?

CREATE TABLE Student(
  id CHAR(8) PRIMARY KEY,
  name VARCHAR(30)
);

INSERT INTO Student
  VALUES ('4567', 'Robert Brown');

A.  ('4567    ', 'Robert Brown                  ')

B.  ('4567    ', 'Robert Brown')

C.  ('4567', 'Robert Brown                  ')

D.  ('4567', 'Robert Brown')

B is correct — CHAR(8) pads the id with spaces; VARCHAR(30) does not pad.

What if we swapped the two values in the INSERT?

CREATE TABLE Student(
  id CHAR(8) PRIMARY KEY,
  name VARCHAR(30)
);

INSERT INTO Student
  VALUES ('Robert Brown', '4567');

('Robert B', '4567') would be stored

Types in SQLite

SQLite has its own types, including:
- INTEGER
- REAL
- TEXT
It also allows you to use the typical SQL types, but it converts them to one of its own types.

As a result, the length restrictions indicated for CHAR and VARCHAR are not observed.
It is also more lax in type checking than typical DBMSs.

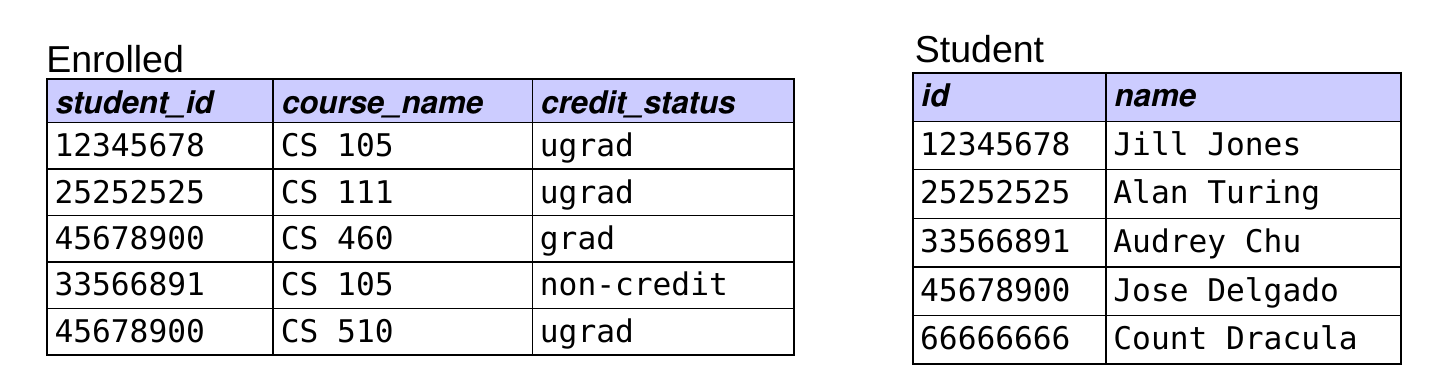

Creating the Enrolled table…

CREATE TABLE Enrolled(
  student_id CHAR(8), course_name VARCHAR(10),
  credit_status VARCHAR(10));

CREATE TABLE Enrolled(
  student_id CHAR(8), course_name VARCHAR(10),
  credit_status VARCHAR(10),
  PRIMARY KEY (student_id, course_name));

CREATE TABLE Enrolled(
  student_id CHAR(8), course_name VARCHAR(10),
  credit_status VARCHAR(10),
  PRIMARY KEY (student_id, course_name),
  FOREIGN KEY (student_id) REFERENCES Student(id));

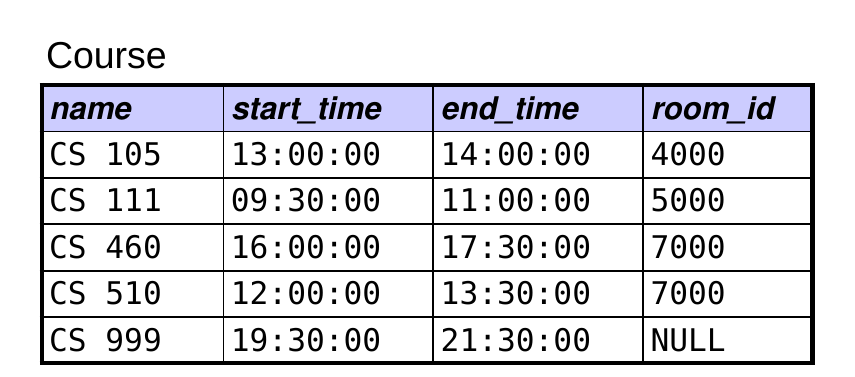

What about the other foreign key in Enrolled?

CREATE TABLE Enrolled(
  student_id CHAR(8), course_name VARCHAR(10),
  credit_status VARCHAR(10),
  PRIMARY KEY (student_id, course_name),
  FOREIGN KEY (student_id) REFERENCES Student(id),
  __________________________________________________);

FOREIGN KEY (course_name)
    REFERENCES Course(name));

Does the order of these insertions matter?

① INSERT INTO Enrolled VALUES('4567', 'CS 105', 'grad');

② INSERT INTO Student VALUES ('4567', 'Robert Brown');

A. ① must come before ②

B. ② must come before ① ← correct why? referential integrity!

C. the order of the two INSERT commands doesn’t matter

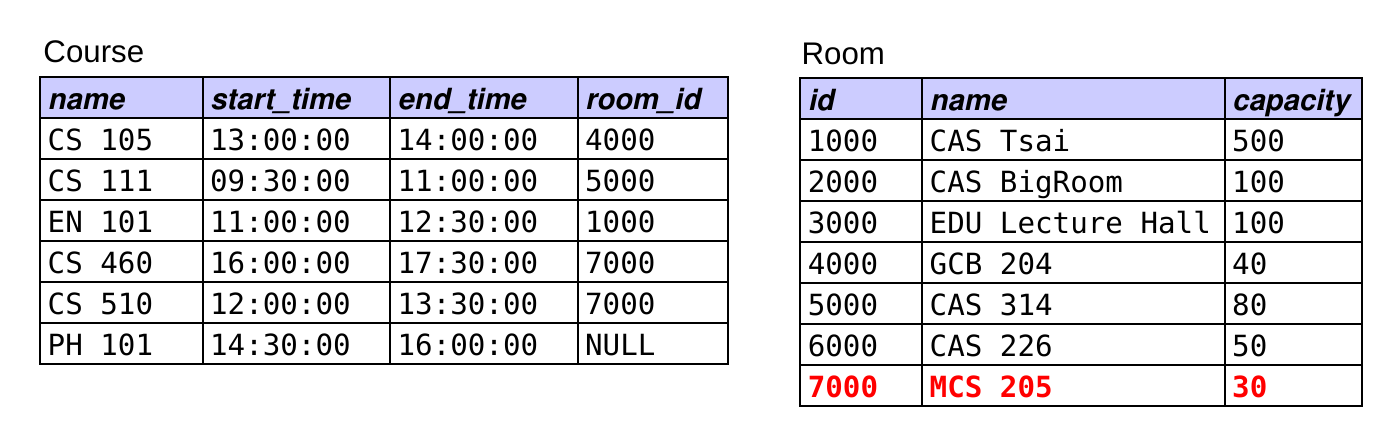

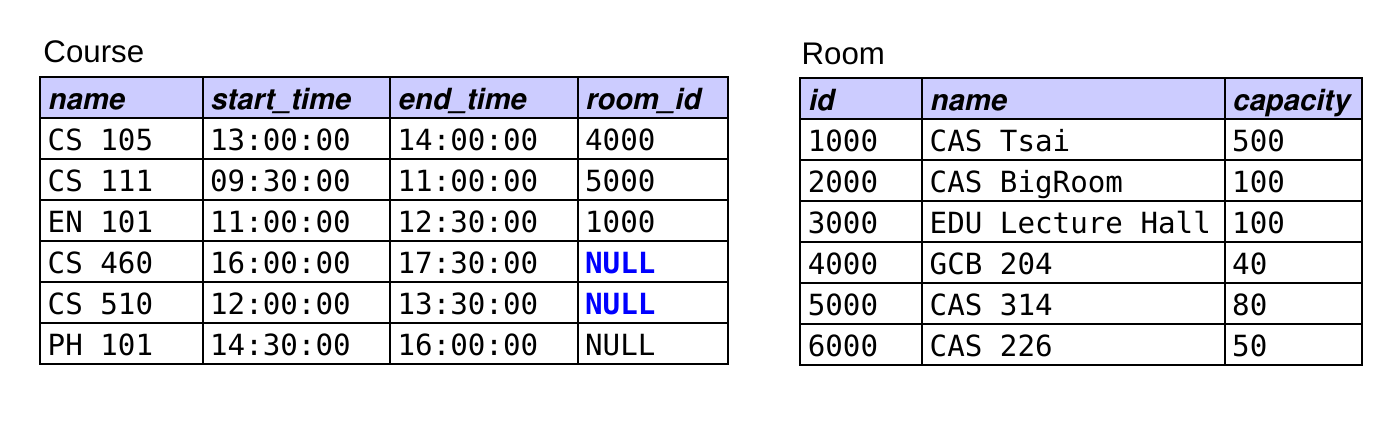

How could I correctly remove MCS 205?

A. DELETE FROM Room WHERE id = '7000';

B. DELETE FROM Room WHERE id = '7000';
UPDATE Course SET room_id = NULL WHERE room_id = '7000';

C. UPDATE Course SET room_id = NULL WHERE room_id = '7000';
DELETE FROM Room WHERE id = '7000'; ← correct

D. two or more of the above would work

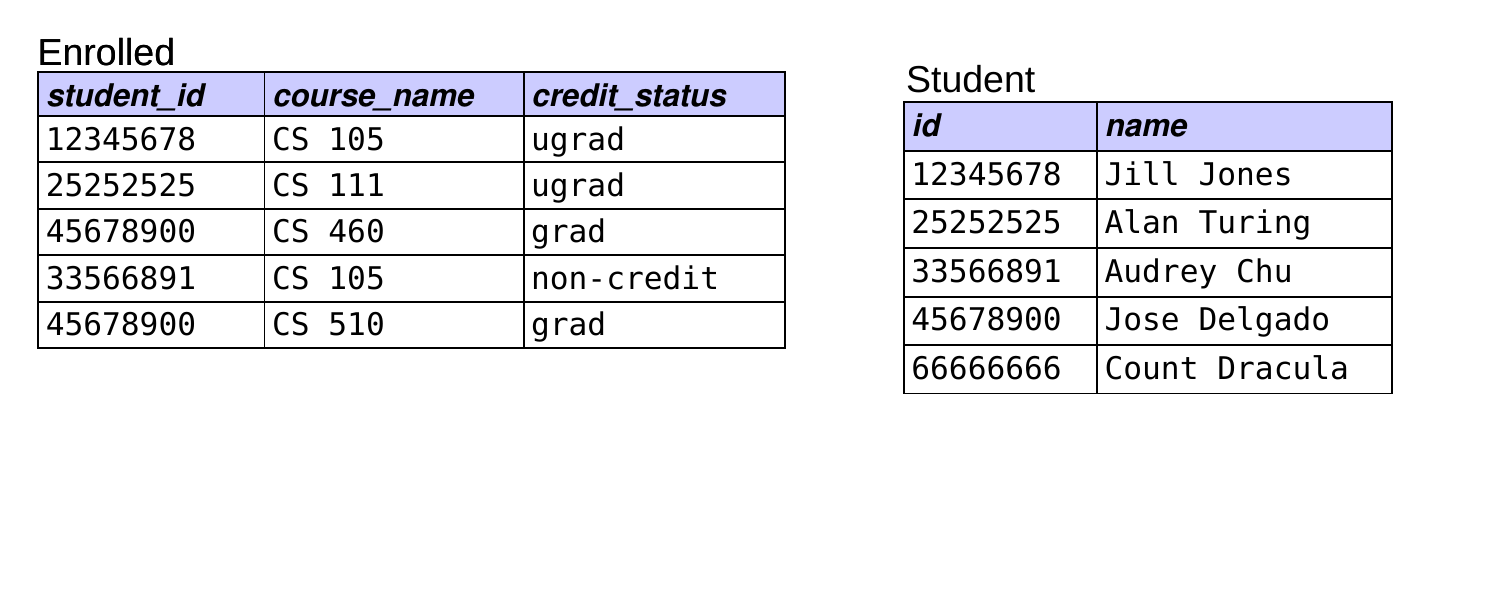

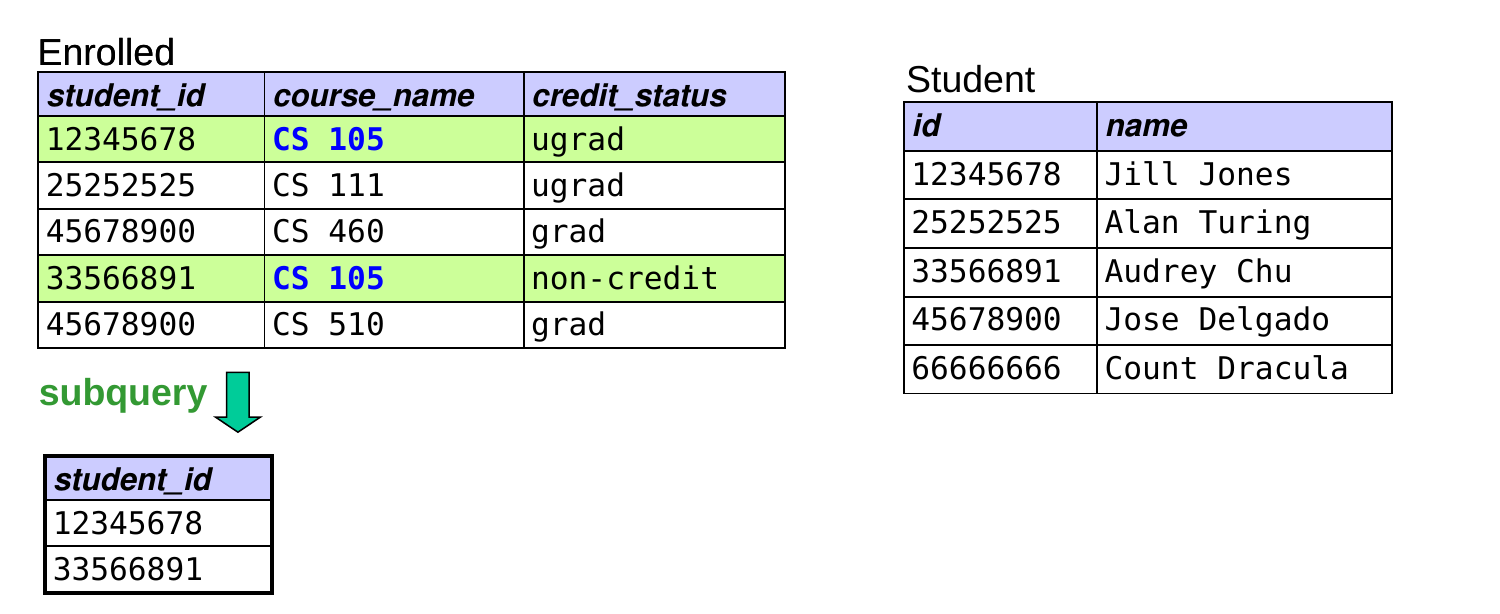

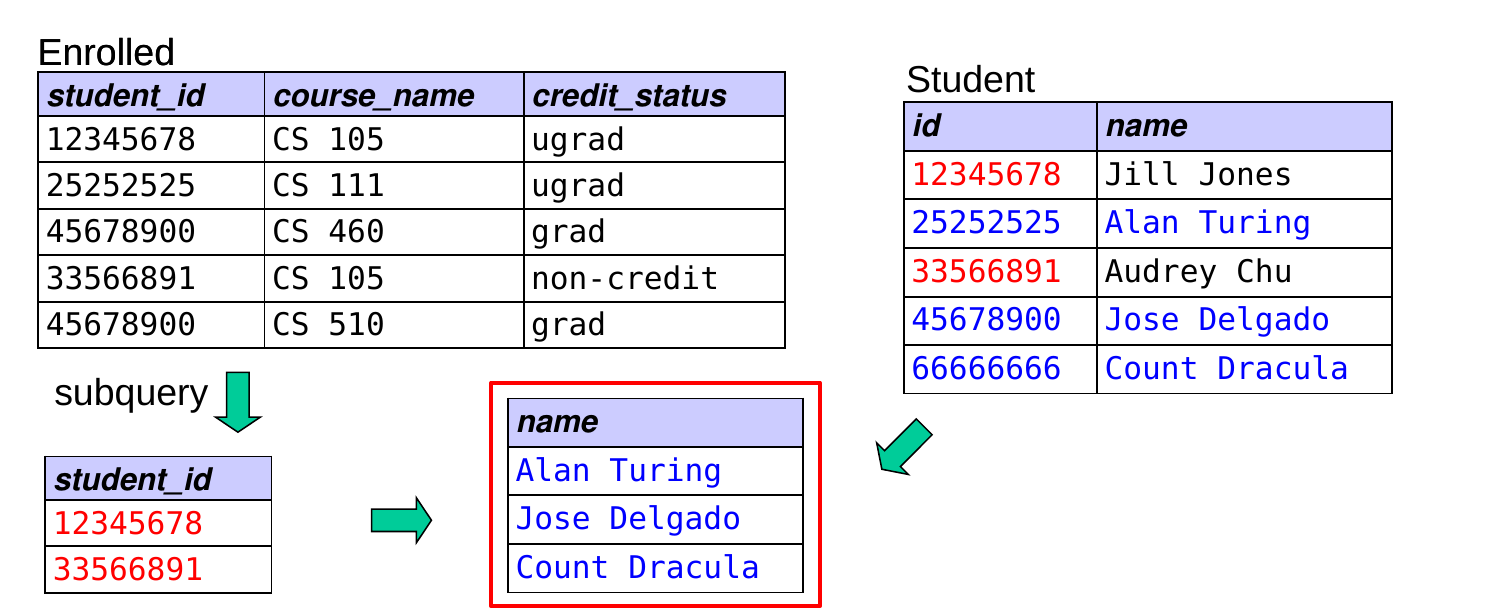

Recall: Subqueries and Set Membership

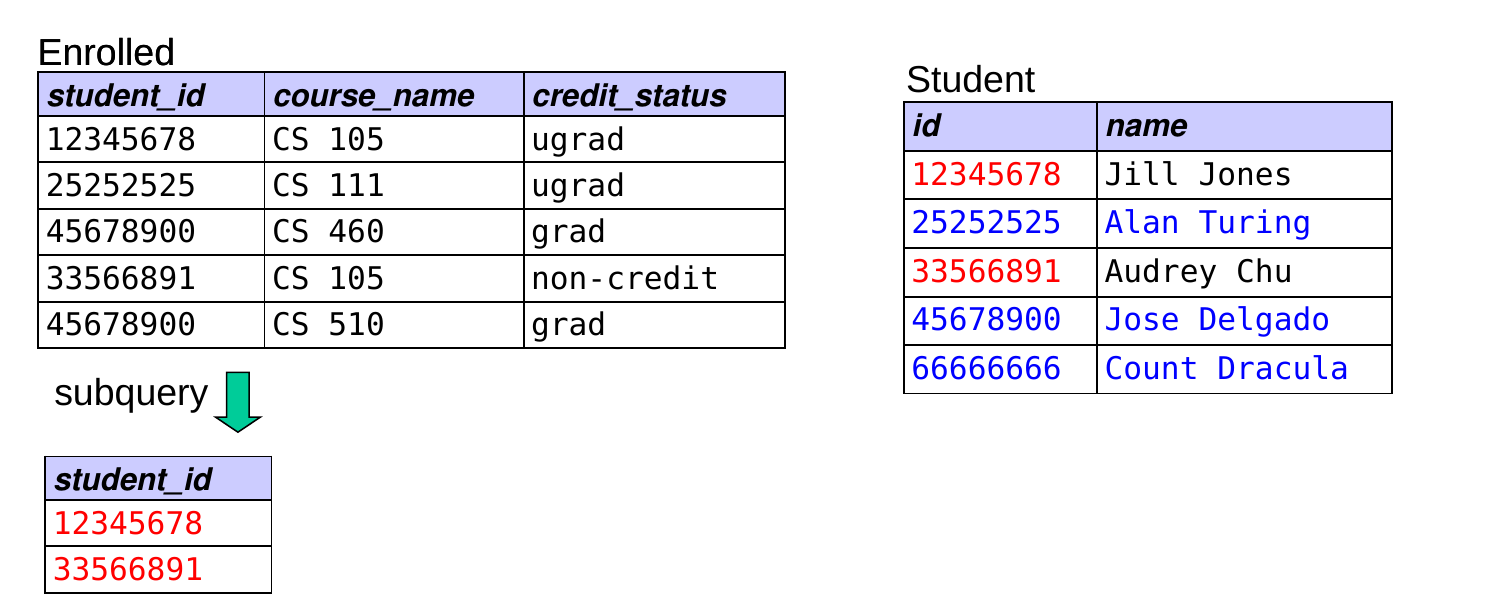

Subqueries can be used to test for set membership in conjunction with the IN and NOT IN operators.

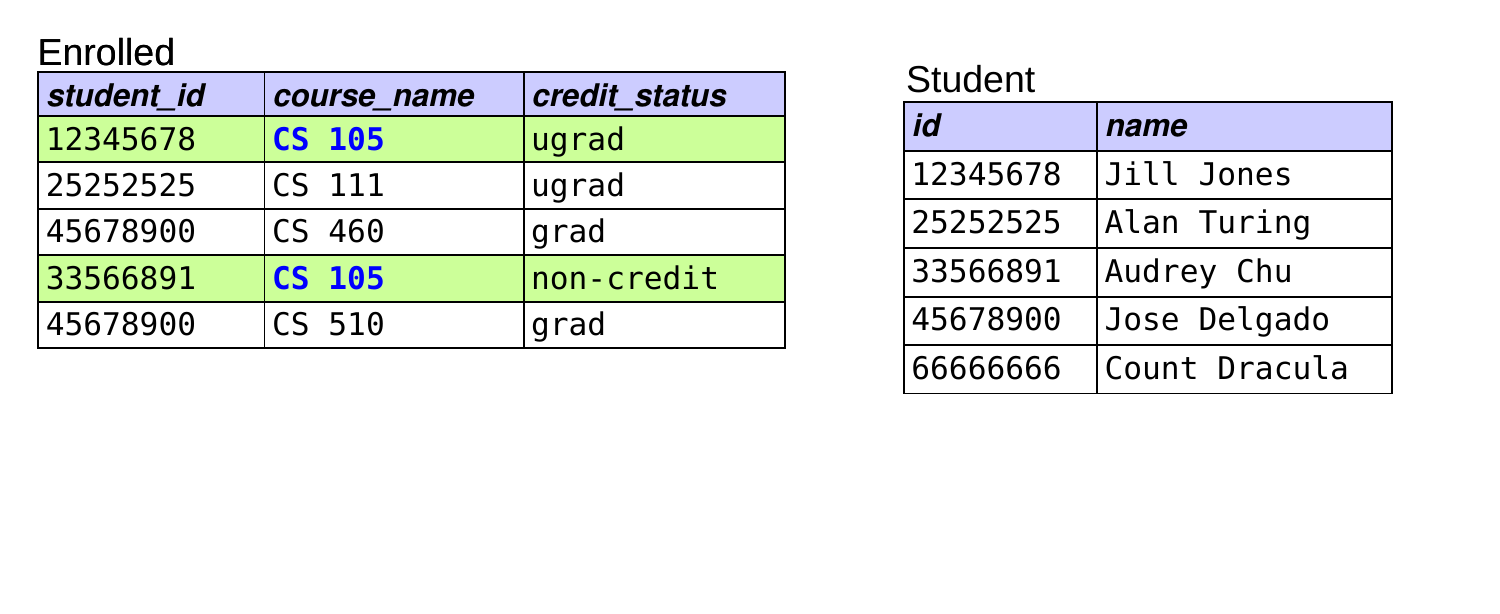

- example: find all students who are not enrolled in CS 105

SELECT name
FROM Student
WHERE id NOT IN (SELECT student_id
                 FROM Enrolled
                 WHERE course_name = 'CS 105');

Writing Queries: Rules of Thumb

Start with the FROM clause. Which table(s) do you need?

If you need more than one table, determine the necessary join conditions.
- for N tables, you typically need N – 1 join conditions
- is an outer join needed? – i.e., do you want unmatched tuples?

Determine if a GROUP BY clause is needed.
- are you performing computations involving subgroups?

Determine any other conditions that are needed.
- if they rely on aggregate functions, put in a HAVING clause
- otherwise, add to the WHERE clause
- is a subquery needed?

Fill in the rest of the query: SELECT, ORDER BY?
- is DISTINCT needed?

Extra Practice Writing Queries

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

1) Find the names of people in the database who acted in Avatar.

SELECT
FROM ???
WHERE

SELECT
FROM Person P, Actor A, Movie M
WHERE ???

SELECT
FROM Person P, Actor A, Movie M
WHERE P.id = A.actor_id
  AND M.id = A.movie_id

SELECT
FROM Person P, Actor A, Movie M
WHERE P.id = A.actor_id
  AND M.id = A.movie_id
  AND M.name = 'Avatar';

SELECT P.name
FROM Person P, Actor A, Movie M
WHERE P.id = A.actor_id
  AND M.id = A.movie_id
  AND M.name = 'Avatar';

Extra Practice Writing Queries (cont.)

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

2) How many people in the database did not act in Avatar? Will this work?

SELECT COUNT(*)
FROM Person P, Actor A, Movie M
WHERE P.id = A.actor_id AND M.id = A.movie_id
  AND M.name != 'Avatar';

If not, what will?

SELECT COUNT(*)
FROM Person
WHERE id NOT IN (SELECT actor_id
                 FROM Actor A, Movie M
                 WHERE A.movie_id = M.id
                   AND M.name = 'Avatar');

Extra Practice Writing Queries (cont.)

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

3) How many people in the database who were born in California have won an Oscar? (assume pob = city, state, country)

SELECT
FROM
WHERE

SELECT
FROM Person P, Oscar O
WHERE

SELECT
FROM Person P, Oscar O
WHERE P.id = O.person_id

SELECT
FROM Person P, Oscar O
WHERE P.id = O.person_id
  AND P.pob LIKE '%California, USA';

SELECT COUNT(DISTINCT P.id)
FROM Person P, Oscar O
WHERE P.id = O.person_id
  AND P.pob LIKE '%California, USA';

Extra Practice Writing Queries (cont.)

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

4) Find the ids and names of everyone in the database who has acted in a movie directed by James Cameron. (Hint: One table is needed twice!)

SELECT
FROM
WHERE

SELECT
FROM Person ActP, Actor A, Director D, Person DirP
WHERE

SELECT
FROM Person ActP, Actor A, Director D, Person DirP
WHERE ActP.id = A.actor_id AND A.movie_id = D.movie_id
  AND D.director_id = DirP.id

SELECT
FROM Person ActP, Actor A, Director D, Person DirP
WHERE ActP.id = A.actor_id AND A.movie_id = D.movie_id
  AND D.director_id = DirP.id
  AND DirP.name = 'James Cameron';

SELECT DISTINCT ActP.id, ActP.name
FROM Person ActP, Actor A, Director D, Person DirP
WHERE ActP.id = A.actor_id AND A.movie_id = D.movie_id
  AND D.director_id = DirP.id
  AND DirP.name = 'James Cameron';

Extra Practice Writing Queries (cont.)

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

5) Which movie ratings have an avg runtime greater than 120 min, and what are their average runtimes?

SELECT
FROM Movie

SELECT
FROM Movie
GROUP BY rating

SELECT
FROM Movie
GROUP BY rating
HAVING AVG(runtime) > 120;

SELECT rating, AVG(runtime)
FROM Movie
GROUP BY rating
HAVING AVG(runtime) > 120;

Extra Practice Writing Queries (cont.)

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

6) For each person in the database born in Boston, Mass, find the number of movies in the database (possibly 0) in which the person has acted. You may assume that names are unique.

SELECT
FROM
WHERE

SELECT
FROM Person LEFT OUTER JOIN Actor ON id = actor_id
WHERE

SELECT
FROM Person LEFT OUTER JOIN Actor ON id = actor_id
WHERE
GROUP BY name

SELECT
FROM Person LEFT OUTER JOIN Actor ON id = actor_id
WHERE pob LIKE 'Boston, Mass%'
GROUP BY name;

SELECT name, COUNT(____________)
FROM Person LEFT OUTER JOIN Actor ON id = actor_id
WHERE pob LIKE 'Boston, Mass%'
GROUP BY name;

SELECT name, COUNT(movie_id)
FROM Person LEFT OUTER JOIN Actor ON id = actor_id
WHERE pob LIKE 'Boston, Mass%'
GROUP BY name;

Practice Writing Queries

Student(id, name)      Department(name, office)      Room(id, name, capacity)
Course(name, start_time, end_time, room_id)     MajorsIn(student_id, dept_name)
Enrolled(student_id, course_name, credit_status)

1) Find the names of all courses taken by comp sci majors.

SELECT DISTINCT course_name
FROM Enrolled E, MajorsIn M
WHERE E.student_id = M.student_id
  AND dept_name = 'comp sci';

2) Find the number of students majoring in each department. (The result should be tuples of the form (dept name, # students).)

SELECT dept_name, COUNT(*)
FROM MajorsIn
GROUP BY dept_name;

Practice Writing Queries (cont.)

Student(id, name)      Department(name, office)      Room(id, name, capacity)
Course(name, start_time, end_time, room_id)     MajorsIn(student_id, dept_name)
Enrolled(student_id, course_name, credit_status)

3) Find the names and ids of all students who have a course in GCB 204.

SELECT DISTINCT S.id, S.name
FROM Student S, Enrolled E, Course C, Room R
WHERE S.id = E.student_id
  AND E.course_name = C.name
  AND C.room_id = R.id
  AND R.name = 'GCB 204';

4) Find the names of all rooms in which one or more CS courses meet.

SELECT DISTINCT Room.name
FROM Course, Room
WHERE room_id = id
  AND Course.name LIKE 'CS%';

Practice Writing Queries (cont.)

Student(id, name)      Department(name, office)      Room(id, name, capacity)
Course(name, start_time, end_time, room_id)     MajorsIn(student_id, dept_name)
Enrolled(student_id, course_name, credit_status)

5a) Find the number of CS majors enrolled in CS 105.

SELECT COUNT(*)
FROM Enrolled E, MajorsIn M
WHERE E.student_id = M.student_id
  AND course_name = 'CS 105'
  AND dept_name = 'comp sci';

5b) Find the number of CS majors enrolled in a course.

SELECT COUNT(DISTINCT E.student_id)
FROM Enrolled E, MajorsIn M
WHERE E.student_id = M.student_id
  AND dept_name = 'comp sci';

Practice Writing Queries (cont.)

Student(id, name)      Department(name, office)      Room(id, name, capacity)
Course(name, start_time, end_time, room_id)     MajorsIn(student_id, dept_name)
Enrolled(student_id, course_name, credit_status)

6) Find the number of majors that each student has declared.

SELECT
FROM

SELECT
FROM Student LEFT JOIN MajorsIn
     ON Student.id = MajorsIn.student_id

SELECT
FROM Student LEFT JOIN MajorsIn
     ON Student.id = MajorsIn.student_id
GROUP BY id, name;

SELECT id, name, COUNT(dept_name)
FROM Student LEFT JOIN MajorsIn
     ON Student.id = MajorsIn.student_id
GROUP BY id, name;

The following will not work, because it counts the rows, rather than the number of non-NULL values:

SELECT id, name, COUNT(*)
FROM Student LEFT JOIN MajorsIn
     ON Student.id = MajorsIn.student_id
GROUP BY id, name;

Practice Writing Queries (cont.)

Student(id, name)      Department(name, office)      Room(id, name, capacity)
Course(name, start_time, end_time, room_id)     MajorsIn(student_id, dept_name)
Enrolled(student_id, course_name, credit_status)

7) For each department with more than one majoring student, output the department’s name and the number of majoring students.

SELECT
FROM MajorsIn

SELECT
FROM MajorsIn
GROUP BY dept_name

SELECT
FROM MajorsIn
GROUP BY dept_name
HAVING COUNT(*) > 1;

SELECT dept_name, COUNT(*)
FROM MajorsIn
GROUP BY dept_name
HAVING COUNT(*) > 1;

Which of these problems would require a GROUP BY?

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

A. finding the Best-Picture winner with the best/smallest earnings rank

B. finding the number of Oscars won by each person that has won an Oscar

C. finding the number of Oscars won by each person, including people who have not won any Oscars

D. both B and C, but not A ← correct: B and C need computations for multiple subgroups

E. A, B, and C

Which would require a subquery? A

Which would require a LEFT OUTER JOIN? C

Now Write the Queries!

Person(id, name, dob, pob)
Movie(id, name, year, rating, runtime, genre, earnings_rank)
Actor(actor_id, movie_id)      Director(director_id, movie_id)
Oscar(movie_id, person_id, type, year)

1) Find the Best-Picture winner with the best/smallest earnings rank. The result should have the form (name, earnings_rank). Assume no two movies have the same earnings rank.

SELECT
FROM
WHERE                 (SELECT
                       FROM
                       WHERE                  );

SELECT
FROM
WHERE                 (SELECT
                       FROM
                       WHERE M.id = O.movie_id);

SELECT
FROM
WHERE                 (SELECT
                       FROM Movie M, Oscar O
                       WHERE M.id = O.movie_id);

SELECT
FROM
WHERE                 (SELECT
                       FROM Movie M, Oscar O
                       WHERE M.id = O.movie_id
                         AND O.type = 'BEST-PICTURE');

SELECT
FROM
WHERE                 (SELECT MIN(earnings_rank)
                       FROM Movie M, Oscar O
                       WHERE M.id = O.movie_id
                         AND O.type = 'BEST-PICTURE');

SELECT
FROM Movie
WHERE earnings_rank = (SELECT MIN(earnings_rank)
                       FROM Movie M, Oscar O
                       WHERE M.id = O.movie_id
                         AND O.type = 'BEST-PICTURE');

SELECT name, earnings_rank
FROM Movie
WHERE earnings_rank = (SELECT MIN(earnings_rank)
                       FROM Movie M, Oscar O
                       WHERE M.id = O.movie_id
                         AND O.type = 'BEST-PICTURE');

Hold off on 2 and 3 for now!
