A First Look at Transactions

Data Science 310

Boston University

Transactions: An Overview

  • A transaction is a sequence of operations that is treated as a single logical operation. (abbreviation = txn)
  • Example: a balance transfer
transaction T1
read balance1
write(balance1 - 500)
read balance2
write(balance2 + 500)
  • Transactions are all-or-nothing: all of a transaction’s changes take effect or none of them do.

Executing a Transaction

  • Issue a command indicating the start of the transaction.
  • Perform the operations in the transaction.
    • in SQL: SELECT, UPDATE, etc.
  • End the transaction in one of two ways:
    • commit it: make all of its results visible and persistent
      • all of the changes happen
  • roll it back / abort it: undo all of its changes, returning to the state before the transaction began
    • none of the changes happen

Why Do We Need Transactions?

  • One reason is to prevent problems stemming from system failures.
    • example: a balance transfer
read balance1
write(balance1 - 500)
CRASH
read balance2
write(balance2 + 500)

Why Do We Need Transactions? (cont.)

  • Another reason is to ensure that operations performed by different users don’t overlap in problematic ways.
    • example: this should not be allowed
user 1
read balance1
write(balance1 - 500)



read balance2
write(balance2 + 500)
user 2
read balance1
read balance2
if (balance1 + balance2 < min)
    write(balance1 - fee)
  • These problems arise due to concurrency or parallelism.
    • Concurrency: multiple processes running on a single CPU and accessing common data
    • Parallelism: multiple CPUs running processses and accessing common data

ACID Properties

  • A transaction has the following “ACID” properties:
    • Atomicity: either all of its changes take effect or none do
  • Consistency preservation: its operations take the database from one consistent state to another
    • consistent = satisfies the constraints from the schema, and any other expectations about the values in the database
  • Isolation: it is not affected by and does not affect other concurrent transactions
  • Durability: once it commits, its changes survive failures
  • The user plays a role in consistency preservation.
    • ex: add to balance2 the same amnt subtracted from balance1
  • the DBMS helps by rejecting changes that violate constraints

Atomicity and Durability

  • To address atomicity and durability, we incorporate a part of the system that performs logging and recovery.

  • Atomicity and durability are guaranteed by the logging and recovery subsystem.

  • These properties are mainly associated with what happens before and after a system crash.

  • After a crash, the recovery subsystem:
    • redoes as needed all changes by committed txns
    • undoes as needed all changes by uncommitted txns
      • restoring the old values of the changed data items
  • We’ll look more at logging and recovery later in the semester.

Why Let Transactions Overlap?

Isolation

  • To guarantee isolation, the DBMS has to prevent problematic interleavings like the one we saw earlier:
transaction T1
read balance1
write(balance1 - 500)


read balance2
write(balance2 + 500)
transaction T2

read balance1
read balance2
if (balance1 + balance2 < min)
    write(balance1 - fee)

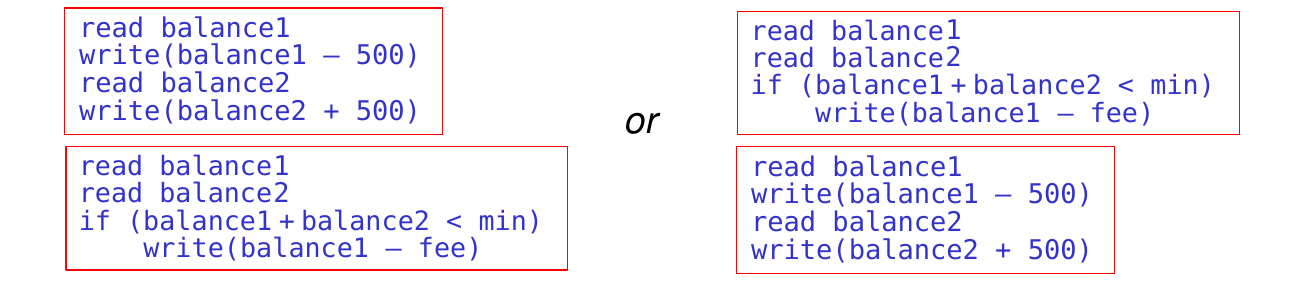

  • One possibility: enforce a serial schedule (no interleaving).

  • This is not desirable for performance reasons.

  • One system is forced to wait - preventing progress.

Serializability

  • A schedule is a specific order of operations.

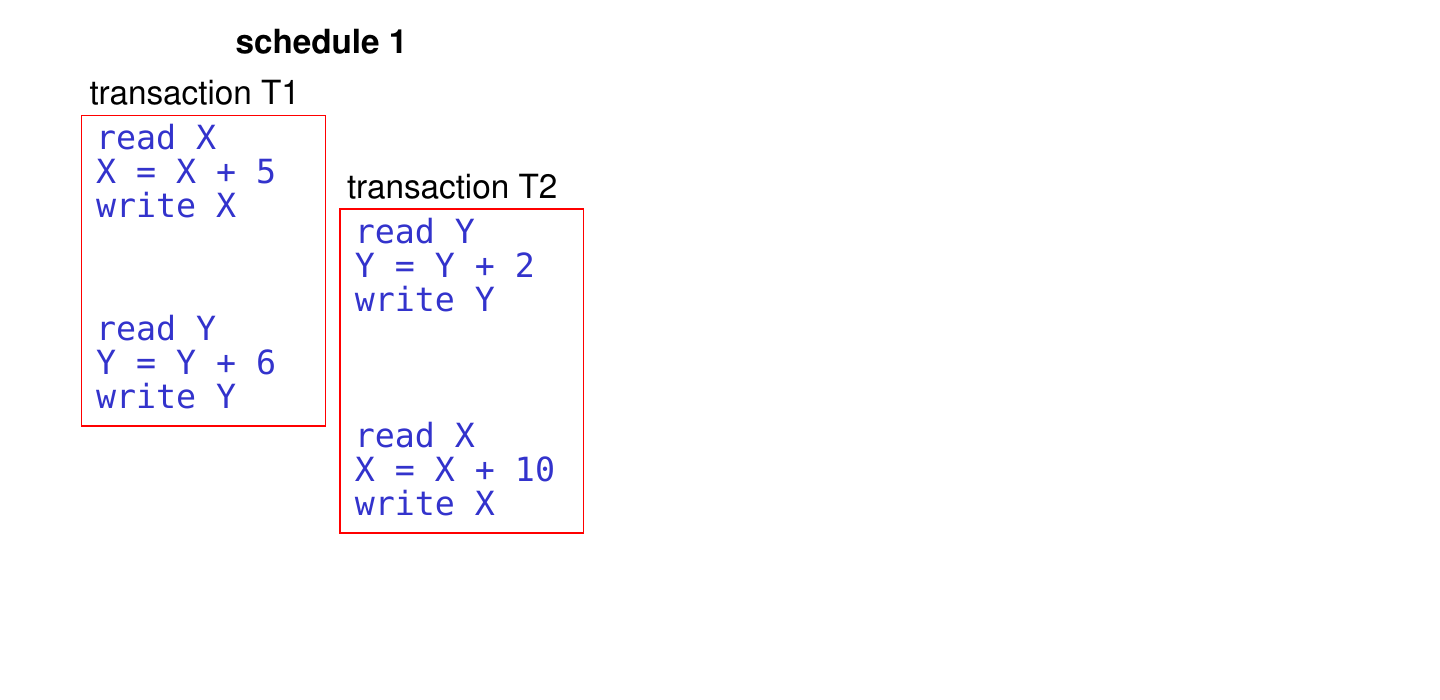

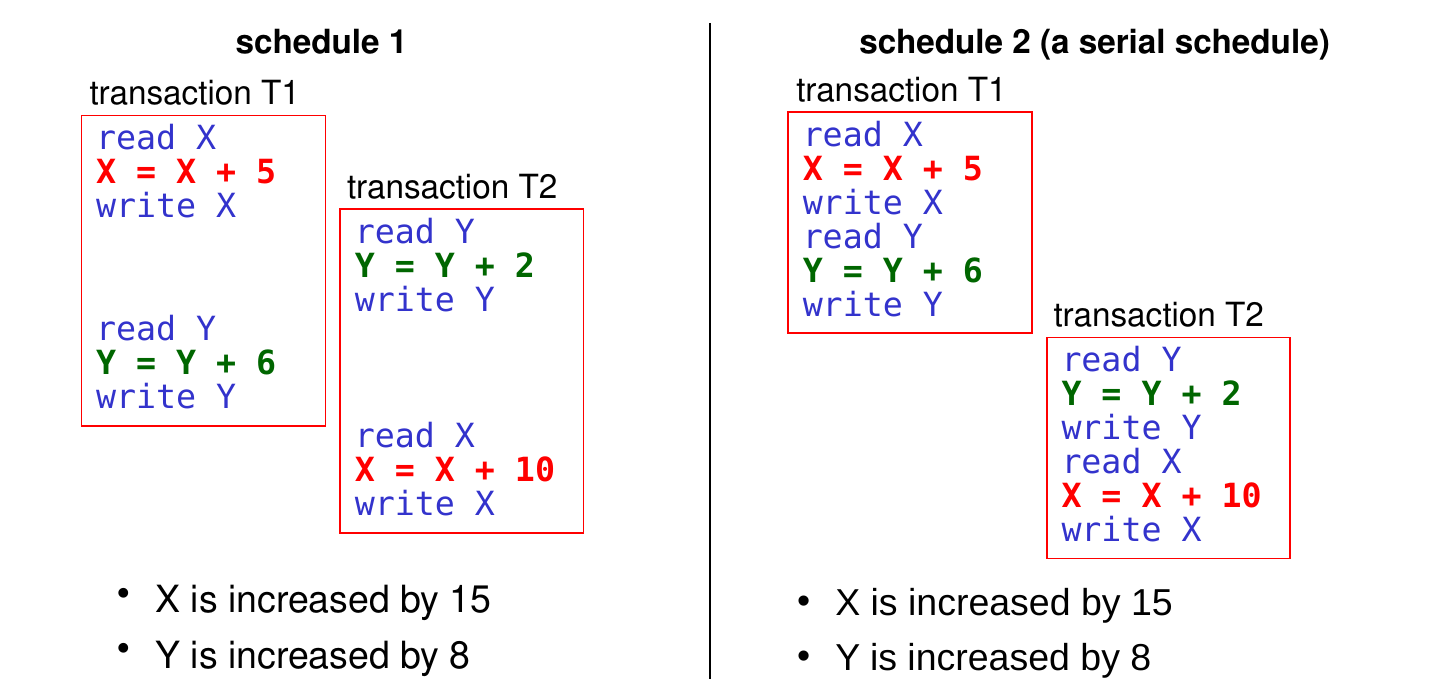

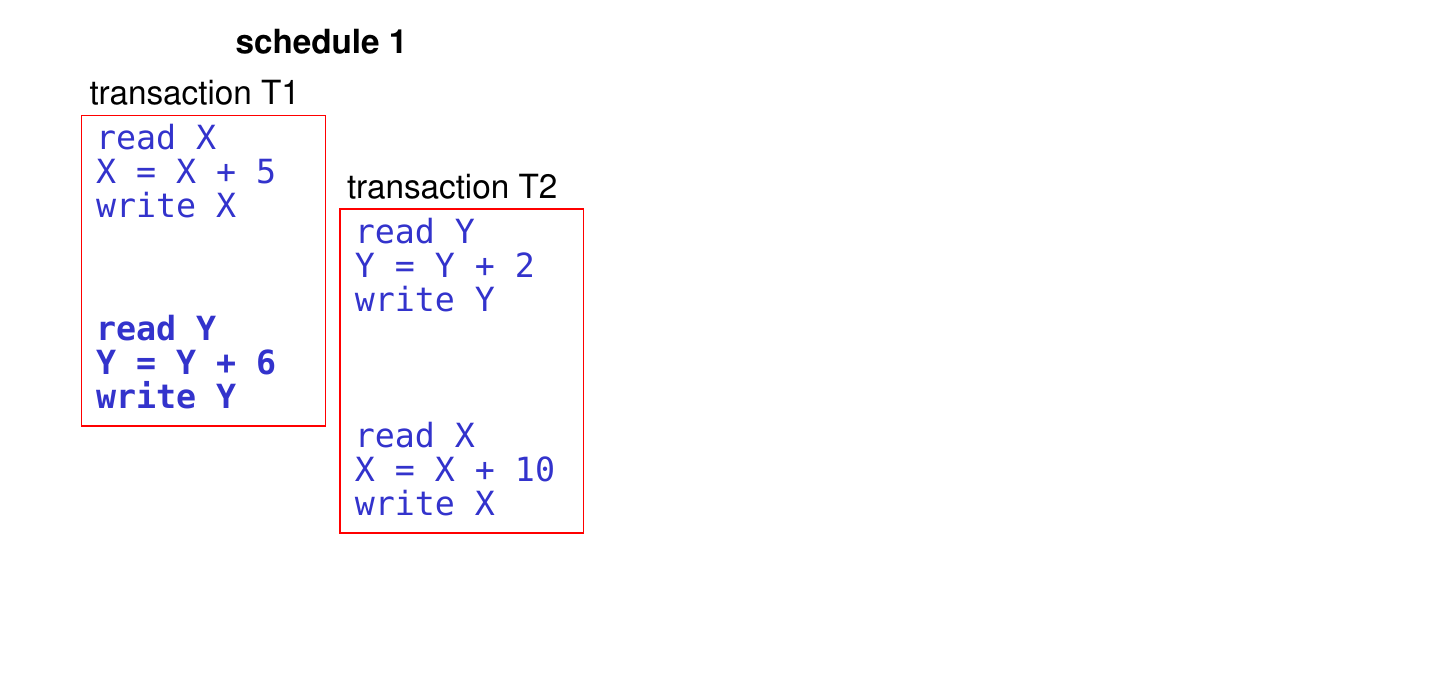

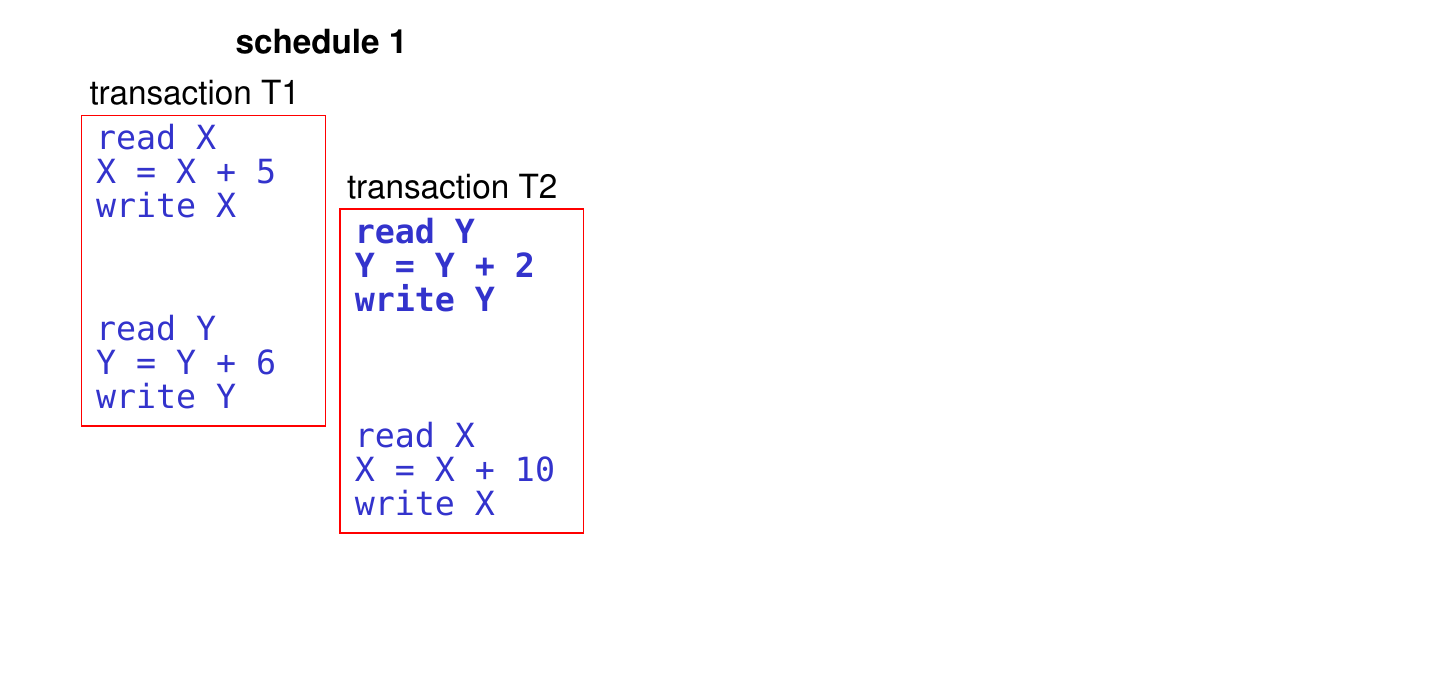

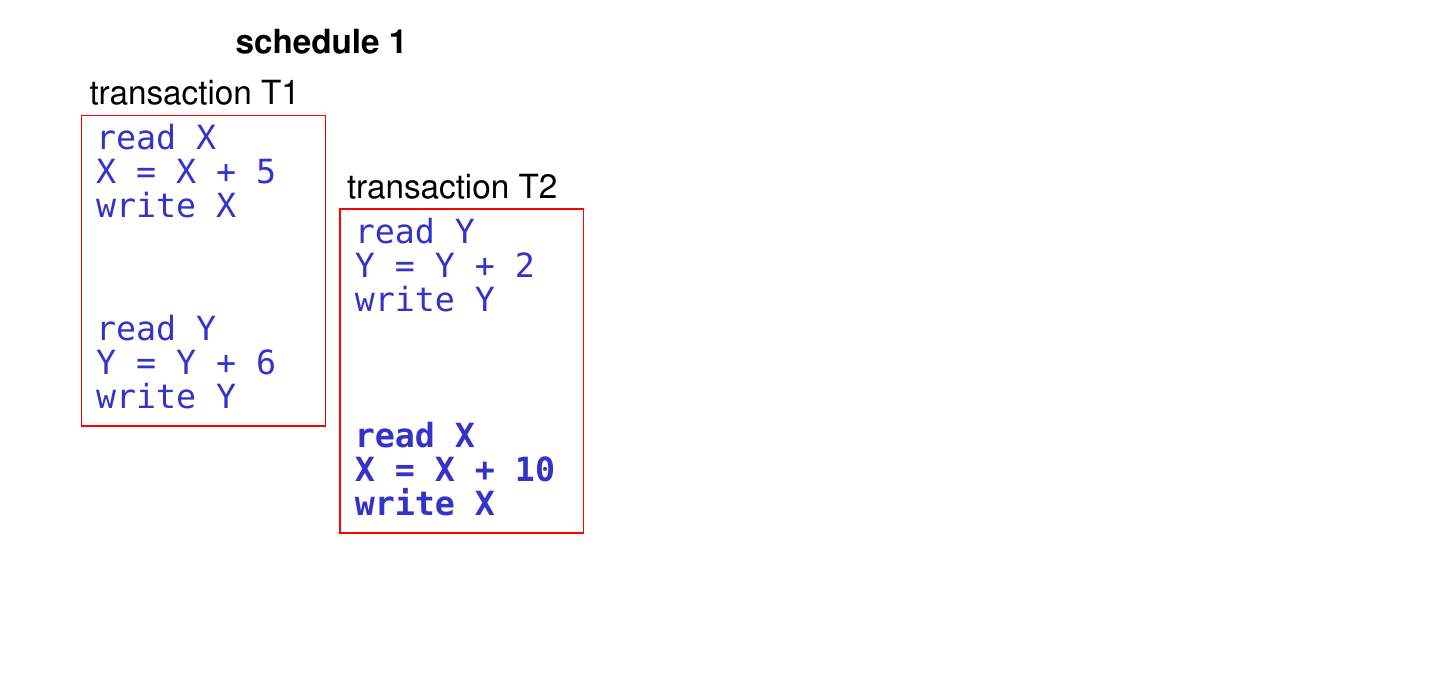

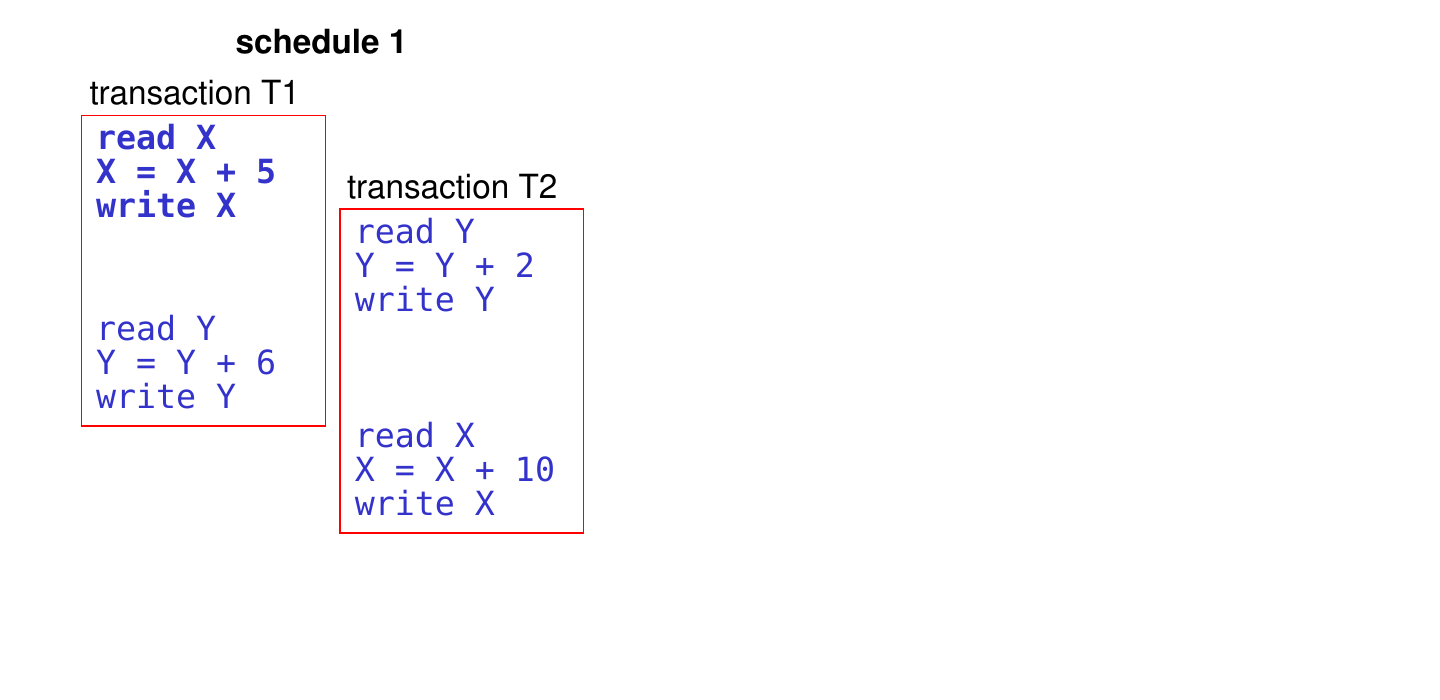

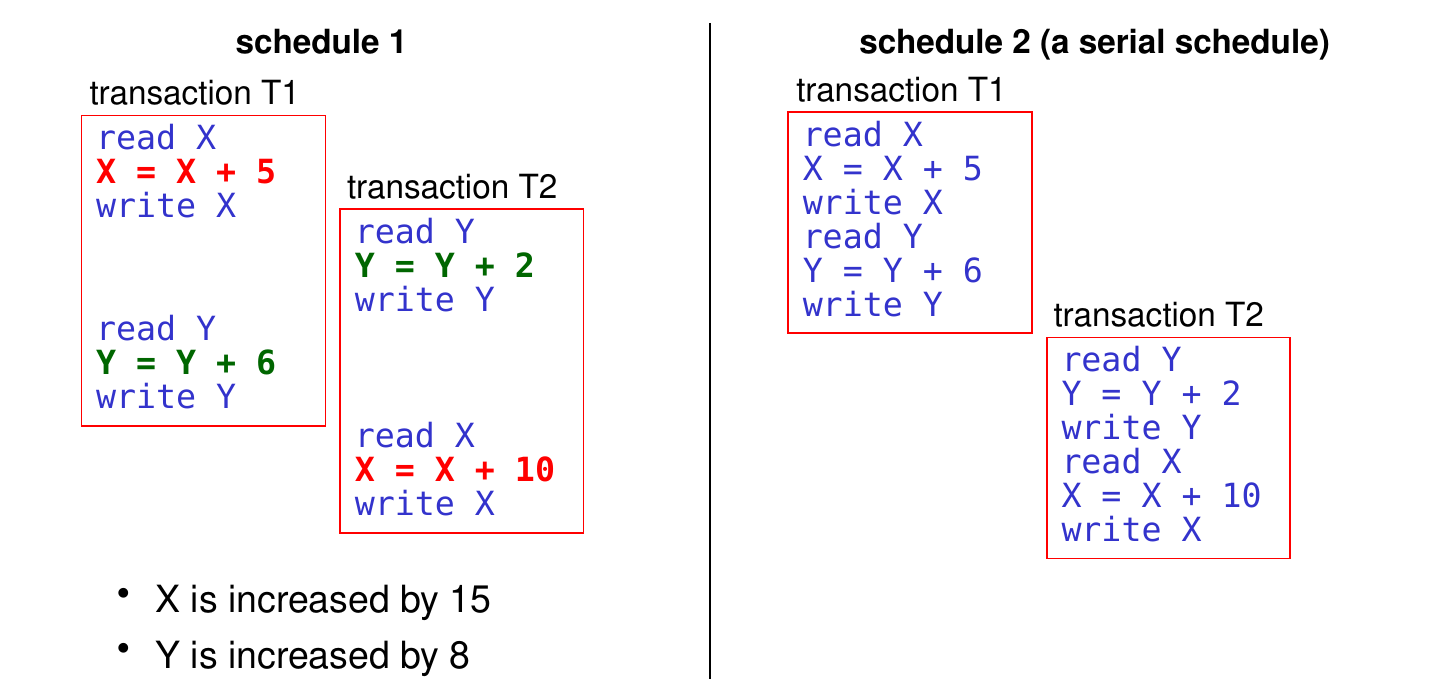

  • A serializable schedule is one whose effects are equivalent to the effects of some serial schedule. For example:

  • Because the effects of schedule 1 are equivalent to the effects of a serial schedule (schedule 2), schedule 1 is serializable.

Not All Schedules Are Serializable!

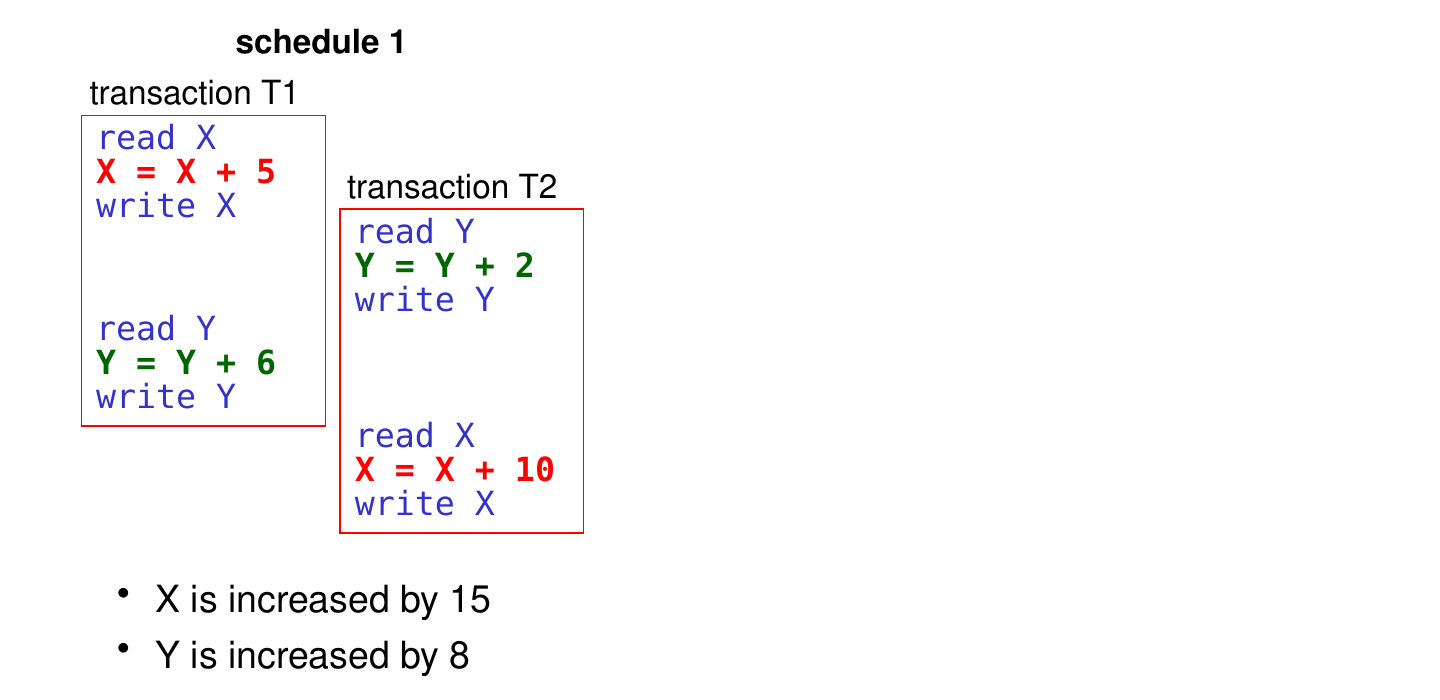

  • Schedule 1 is actually a special case.
  • both T1 and T2 use addition to change the values of X and Y
  • addition is commutative
  • thus, the order in which T1 and T2 make their changes doesn’t matter!

Not All Schedules Are Serializable! (cont.)

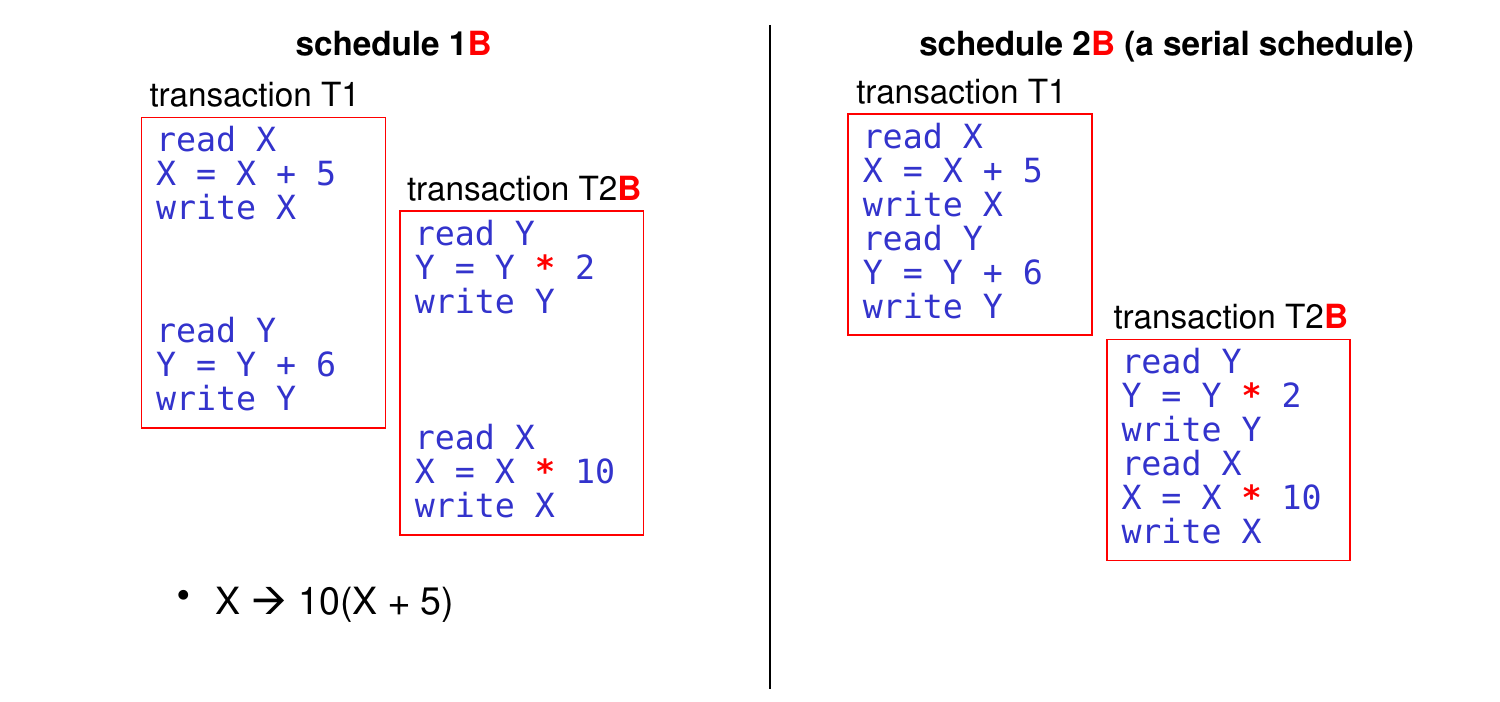

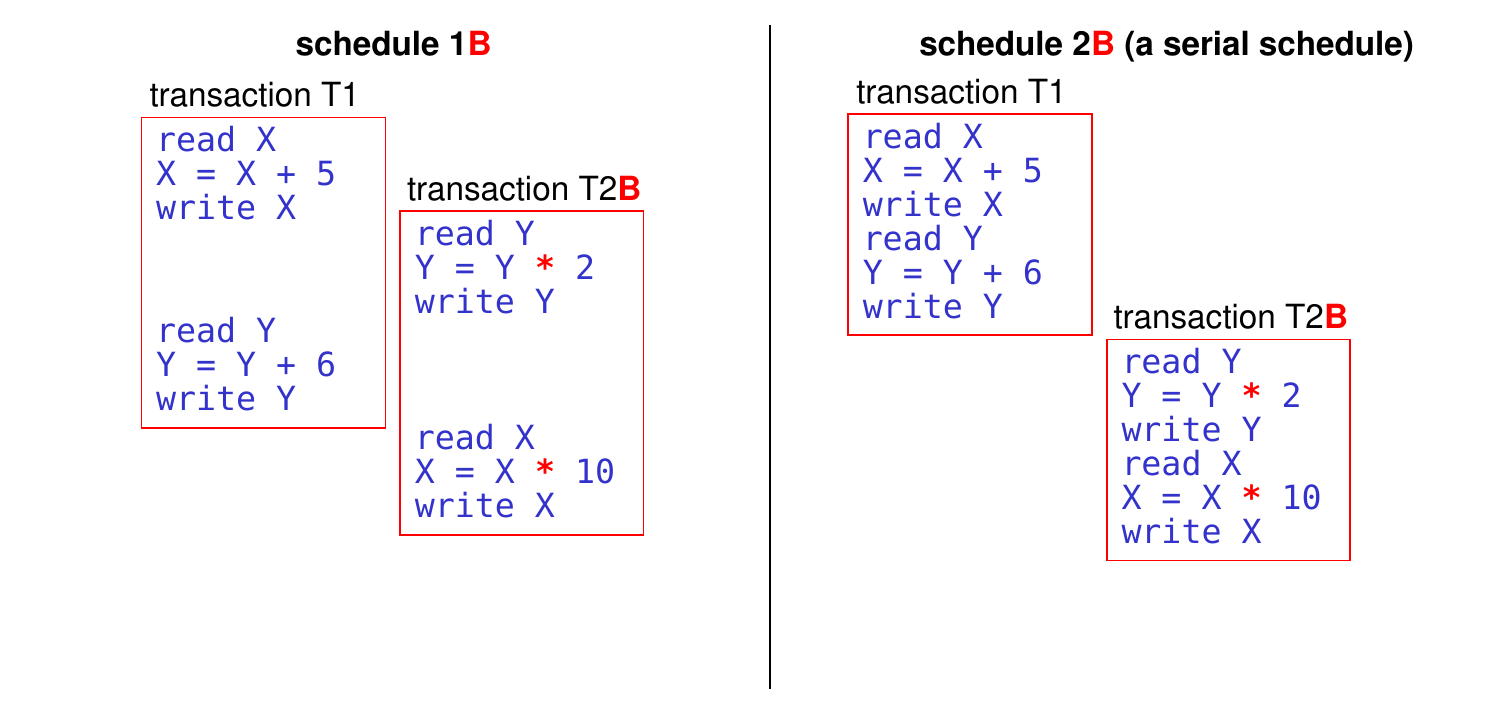

  • If we change T2 so that it uses multiplication, the original interleaving is no longer serializable.

    • addition and multiplication don’t commute with each other!

  • Is there a serial schedule that achieves the same result as 1B?

  • Because effects of schedule 1B are not equivalent to the effects of any serial schedule of T1 + T2B, schedule 1B is not serializable.

Conventions for Schedules

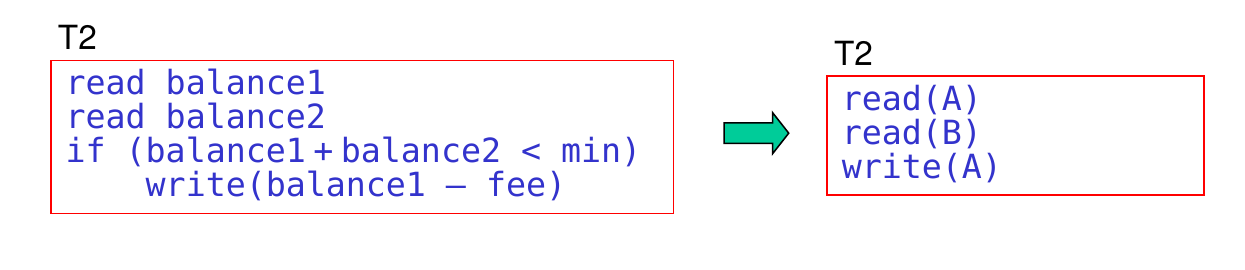

  • We abstract all transactions into sequences of reads and writes.
    • example:
  • we use a different variable for each data item that is read or written
  • we ignore:
    • the actual meaning and values of the data items
    • the nature of the changes that are made to them
    • things like comparisons that a transaction does in its own address space

Conventions for Schedules (cont.)

  • We can represent a schedule using a table.
    • one column for each transaction
    • operations are performed in the order given by reading from top to bottom

  • We can also write a schedule on a single line using this notation:
    • ri(A) = transaction Ti reads A
    • wi(A) = transaction Ti writes A
  • example for the table above:
        r1(A);  r2(B);  w1(A);  r2(A);  w2(A)

Which of the following expresses this schedule?

A. r1(A); r2(A); w1(B); r2(B); w2(A)

B. r2(A); w2(B); r1(A); r1(B); w1(A)

C. r1(A); r1(B); w1(A); r2(A); w2(B)

D. r2(A); r1(A); w2(B); r1(B); w1(A) ← correct!

E. none of the above

Serializability of Abstract Schedules

  • How can we determine if an abstract schedule is serializable?
    • given that we don’t know the exact nature of the changes made to the data
  • Each time a variable is written, we will consider it to be a new value.
  • We focus on the following:
    • which transaction is the last one to write each data item
      • that’s the value that will be seen after the schedule
  • which value of a data item is read by each transaction
    • assume that if a transaction reads a different value, its subsequent behavior might be different

Conflicts in Schedules

  • A conflict is a pair of actions that can’t be swapped without potentially changing the behavior of one or more transactions.

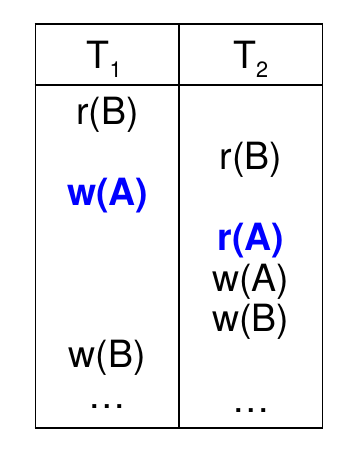

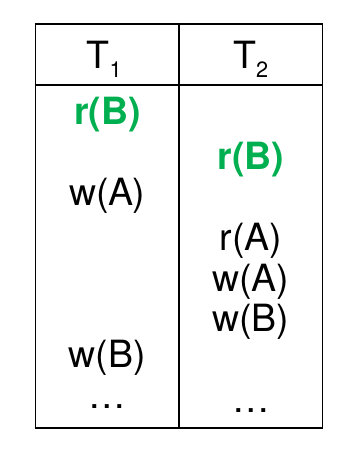

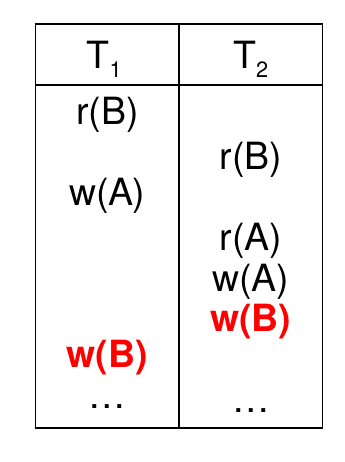

  • Examples in the schedule at right:
  • w1(A) and r2(A)
    • swapping them leads T2 to read a different value of A
  • this may cause T2 to behave differently
  • w2(B) and w1(B)
    • swapping them means later readers of B will see a different value of B
  • this may cause them to behave differently
  • r1(B) and r2(B) do not conflict. why?
  • swapping them doesn’t affect the value of B that either transaction sees

Which Actions Conflict?

  • Actions in different transactions conflict if: 1) they involve the same data item and 2) at least one of them is a write
  • Pairs of actions that do conflict (assume i != j):
    • wi(A); rj(A) — the value read by Tj may change if we swap them
  • ri(A); wj(A) — the value read by Ti may change if we swap them
  • wi(A); wj(A) — subsequent reads may change if we swap them
  • two actions from the same txn (their order is fixed by the client)
  • Pairs of actions that don’t conflict:
    • ri(A); rj(A) – two reads of the same item by different txns
  • operations on two different items by different txns:
    • ri(A); rj(B)
    • ri(A); wj(B)
    • wi(A); rj(B)
    • wi(A); wj(B)

Conflict Serializability

  • Rather than ensuring serializability, it’s easier to ensure a stricter condition known as conflict serializability.
  • A schedule is conflict serializable if we can turn it into a serial schedule by swapping pairs of consecutive actions that don’t conflict.

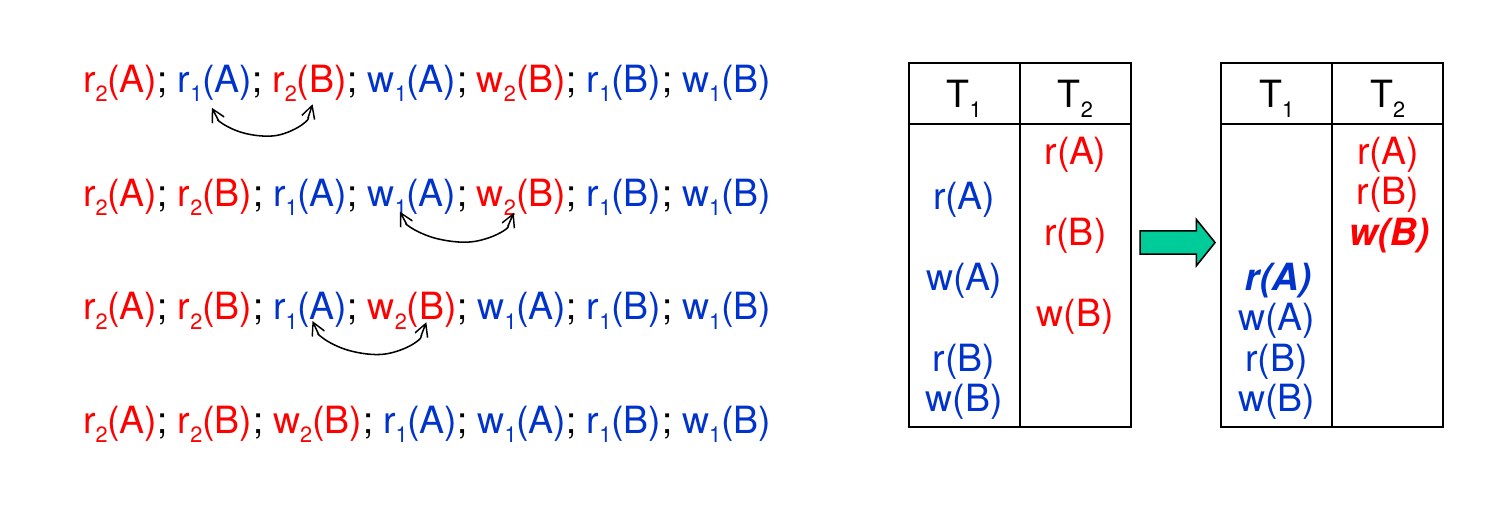

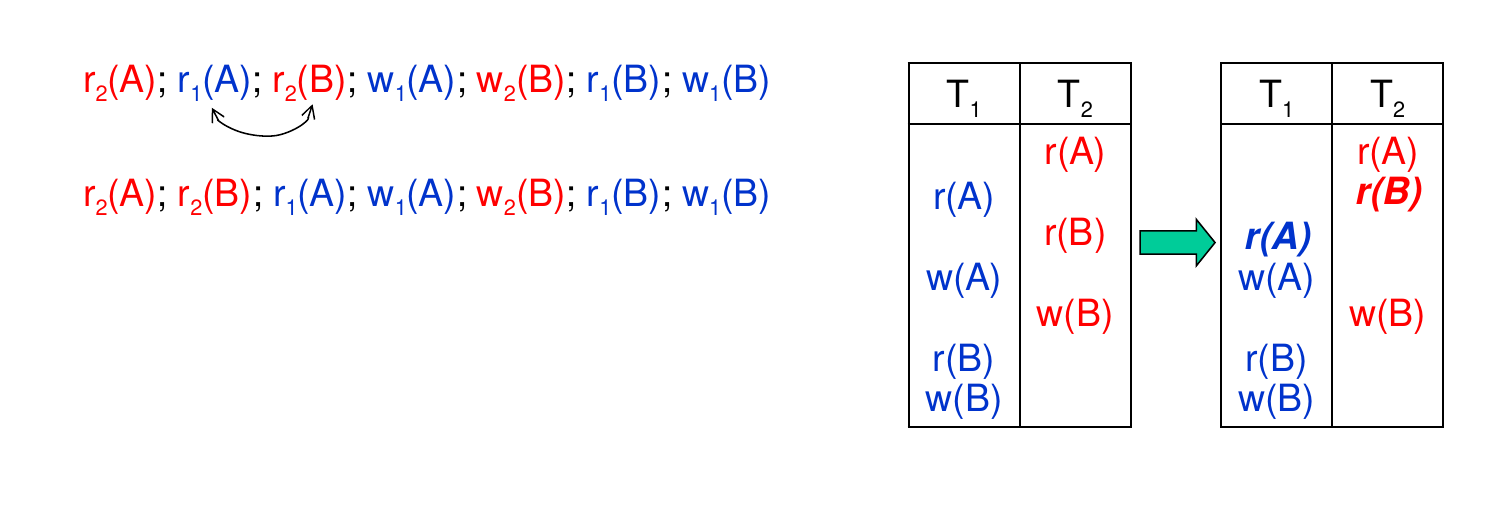

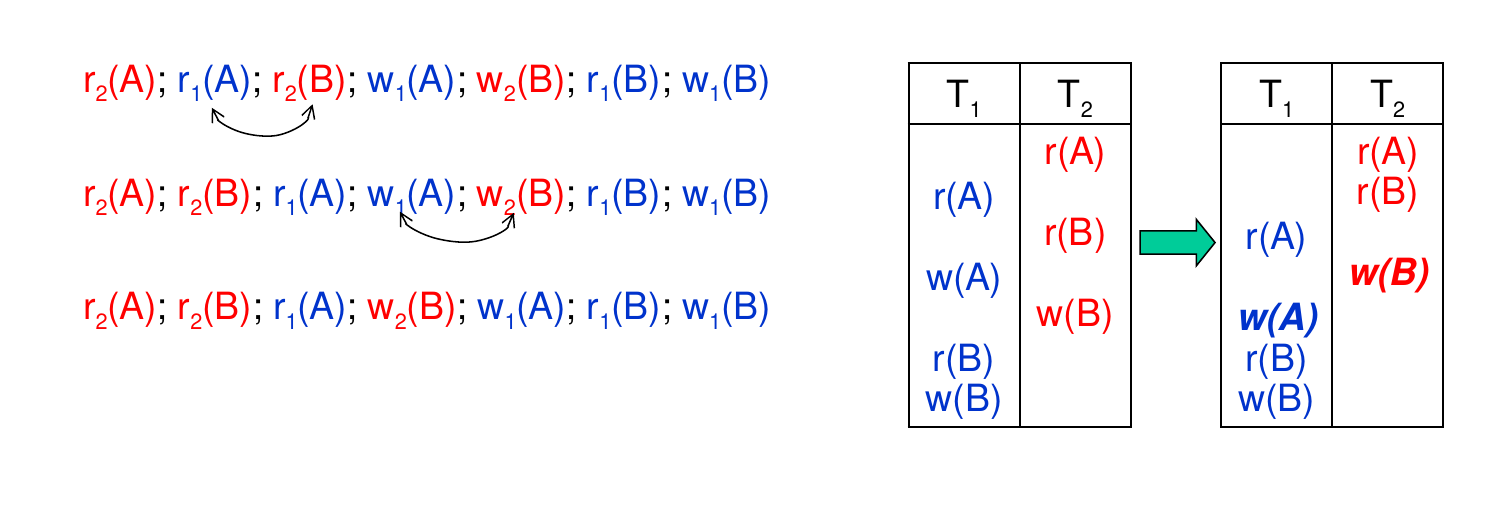

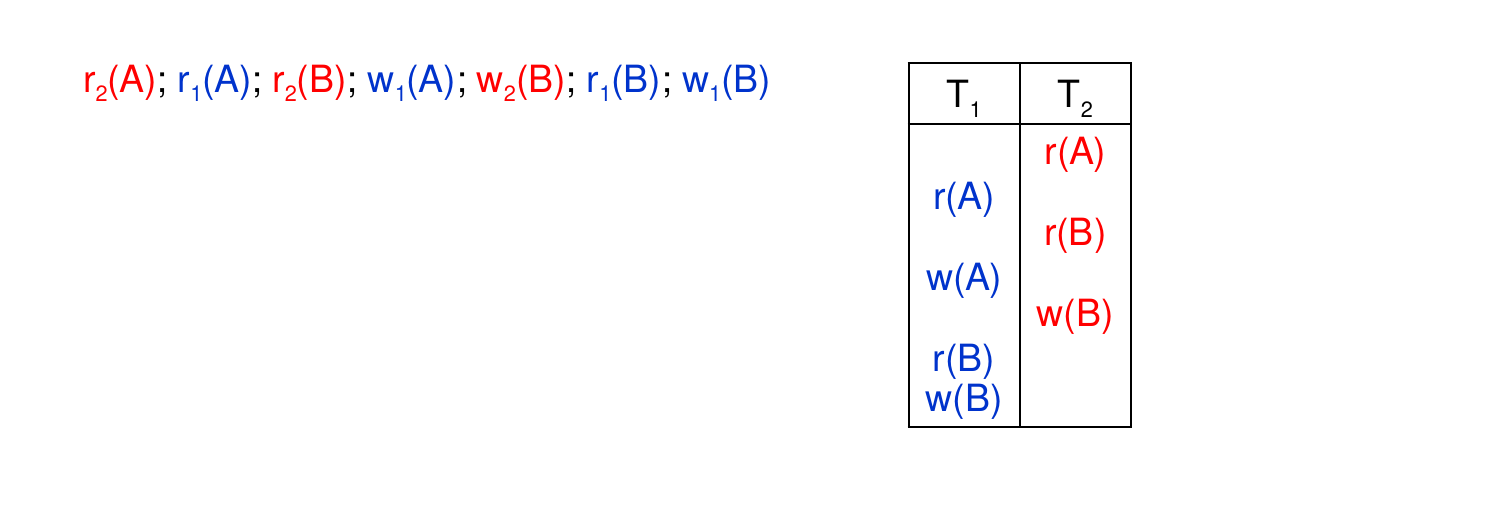

Example of a Conflict Serializable Schedule

  • The final schedule is referred to as an equivalent serial schedule.
  • serial – all of T2, followed by all of T1
  • equivalent – it produces the same results as the original schedule

Testing for Conflict Serializability

  • Because conflicting pairs of actions can’t be swapped, they impose constraints on the order of the txns in an equivalent serial schedule.
  • example: if a schedule includes w1(A) … r2(A), T1 must come before T2 in any equivalent serial schedule
  • To test for conflict serializability:
    • determine all such constraints
    • make sure they aren’t contradictory
  • Example: r2(A); r1(A); r2(B); w1(A); w2(B); r1(B); w1(B)
  • r2(A) … w1(A) means T2 must come before T1
  • r2(B) … w1(B) means T2 must come before T1
  • w2(B) … r1(B) means T2 must come before T1
  • w2(B) … w1(B) means T2 must come before T1
  • no contradictions, so this schedule is equivalent to the serial ordering T2;T1
  • Thus, this schedule is conflict serializable.

Testing for Conflict Serializability (cont.)

  • What about this schedule?  r1(B); w1(B); r2(B); r2(A); w2(A); r1(A)
  • Which of the following pairs of actions from this schedule conflict?

A. r1(B); r2(B) — don’t conflict – both are reads

B. r1(B); w2(A) — don’t conflict – they involve different data items

C. w1(B); r2(B) — conflict – same item, at least one write

D. r2(B); r2(A) — conflict – by the same txn, so can’t reorder

E. w2(A); r1(A) — conflict – same item, at least one write

Testing for Conflict Serializability (cont.)

  • What about this schedule?  r1(B); w1(B); r2(B); r2(A); w2(A); r1(A)
  • What constraints do C and E impose on any equivalent serial schedule?

A. r1(B); r2(B)

B. r1(B); w2(A)

C. w1(B); r2(B) — T1 must come before T2

D. r2(B); r2(A)

E. w2(A); r1(A) — T2 must come before T1

  • contradiction!
  • Thus, this schedule is not conflict serializable.

Using a Precedence Graph

  • Tests for conflict serializability can use a precedence graph.
    • the vertices/nodes are the transactions
    • add an edge for each precedence constraint: T1 → T2 means T1 must come before T2 in an equivalent serial schedule
  • Example: r2(A); r3(A); r1(B); w4(A); w2(B); r3(B)
  • r2(A) … w4(A) means T2 → T4
  • r3(A) … w4(A) means T3 → T4
  • r1(B) … w2(B) means T1 → T2
  • w2(B) … r3(B) means T2 → T3

  • After the graph is constructed, we test for cycles (i.e., paths of the form A → … → A).
    • if the graph is acyclic, the schedule is conflict serializable
      • use the constraints to determine an equivalent serial schedule (in this case: T1;T2;T3;T4)
  • if there’s a cycle, the schedule is not conflict serializable
